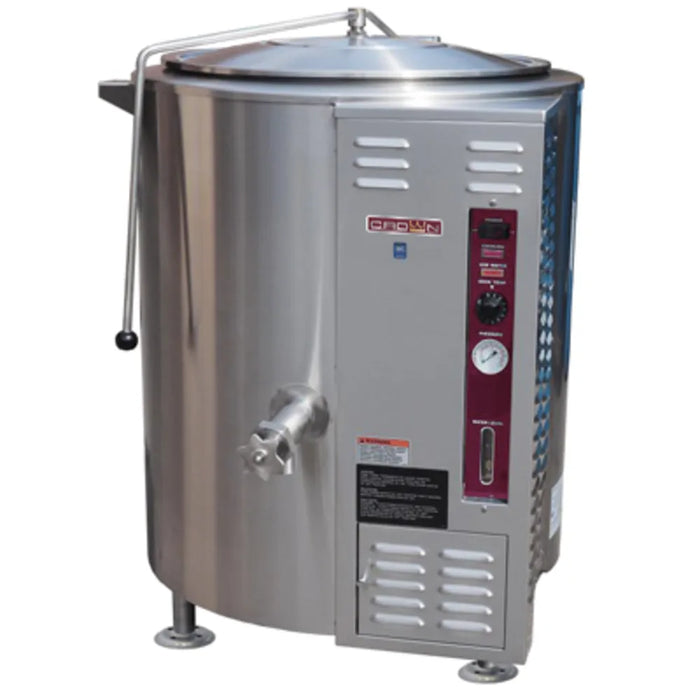

Crown Steam GL‐60E 60-Gallon Natural Gas Stationary Steam Kettle - 130,000 BTU
Product Overview
- Stainless steel construction
- 60 Gal. capacity
- Natural gas Kettle
- 2/3 jacketed design ensures even heat distribution
- 2" tangent draw-off valve and perforated strainer
- Spring-assisted hinged cover included
- Low-water cut-off and pressure relief valve
- Built-in direct immersion thermostat
Description
The Crown Steam 60-Gallon Natural Gas Stationary Steam Kettle is a high-output solution for industrial kitchens, and large-scale catering facilities requiring massive batch consistency. With a 60 gal. capacity, this gas-powered unit utilizes a 2/3 steam jacket to provide uniform heat across the vessel, preventing the hot spots and scorching. The interior is lined with 316 stainless steel, a premium material specifically chosen for its superior resistance to high-acid foods and salt, ensuring long-term durability in heavy-use environments.
Equipped with a 130,000 BTU burner system, the kettle features electronic ignition and a direct immersion thermostat for precise heat oversight. Safety and monitoring are integrated into the front control panel, which includes a water sight glass, pressure gauge, and a low-water indicator light with an automatic cut-off. These features allow staff to monitor the internal steam pressure and jacket water levels at a glance, maintaining a safe and efficient workflow during intense production cycles.
Standard features of the GL-60E emphasize operator safety and high-speed product removal. The 2" tangent draw-off valve allows for the rapid emptying of finished batches, while the included TPS-2 perforated strainer keeps solids from obstructing the drain. To reduce physical strain, the kettle includes a spring-assisted hinged cover, and the tri-leg base with adjustable flanged feet provides a permanent, stable mounting solution. This 60-gallon kettle is an essential asset for facilities requiring maximum throughput and batch uniformity.
Specifications
| Specifications | |
|---|---|
| Model | GL-60E |
| Width | 34.63 Inches |
| Depth | 39.75 Inches |
| Height | 47.38 Inches |
| Hood Height | 84.50 Inches |
| Capacity | 60 Gallon (227 L) |
| Drain Valve | 2 Inches Tangent Draw-Off |
| Temperature Range | 74°C to 140°C (165°F - 285°F) |
| BTU | 130,000 BTU |
| Voltage | 120 V |
| Hertz | 60 Hz |
| Phase | 1 Ph |
| Wattage | 38.1 kW/Hr. |
| Pipe Pressure | 6-14 Inches |
| Steam Jacket | 2/3 Jacketed |
| Fuel Type | Natural Gas |
| Base Support Type | Tri-Leg with Adjustable Flanged Feet |
| Material | Stainless Steel |
| Product Type | Kettle |
NSF Certified This item meets NSF's standards that focuses on public health protection, ensuring the item is designed and constructed in a way that promotes food safety.
