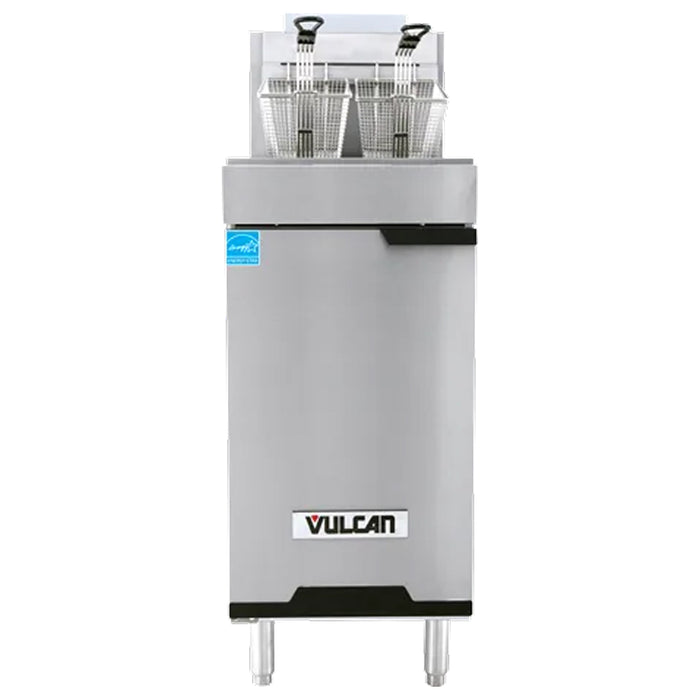

Vulcan 1VEG50M Core 45 - 50 Lbs. Gas Floor Fryer - 85,000 BTU
Product Overview
- 15.50 x 29.87 freestanding fryer
- 45-50 lbs. oil capacity with 85,000 BTU/hr
- Stainless steel fry tank and front with a reinforced door
- Millivolt thermostat control adjusts from 93.3°C to 204.4°C (200°F to 400°F)
- Includes twin fry baskets with plastic-coated handles
- Designed for natural gas with a 3/4" rear gas connection
- 1 1/4" full port ball type drain valve
Description
The Vulcan Core Series VEG is a 45-50 lbs. natural gas freestanding fryer designed for light-to-medium duty commercial kitchens seeking reliable, efficient deep-frying. Delivering 85,000 BTU/hr. of power, this Energy Star certified unit maintains consistent production rates while significantly reducing gas consumption. Its millivolt thermostat controls require no electrical hook-up, offering flexible placement and simple operation with temperature adjustments ranging from 93.3°C to 204.4°C (200°F to 400°F).
Built for long-term durability and ease of maintenance, the fryer features a rugged stainless steel fry tank and front, complete with a reinforced door that stays securely closed via an earth magnet. Cleaning and oil management are streamlined thanks to a 1 ¼" full port ball-type drain valve and twin fry baskets equipped with comfortable plastic-coated handles. Standard high-temperature limit controls provide essential safety by automatically shutting off the gas if safe operational limits are exceeded.
This unit maximizes kitchen space without compromising output. It comes standard with a 3/4" rear gas connection and adjustable nickel-plated legs to ensure stability on uneven surfaces, making it an ideal, cost-effective workhorse for various foodservice setups.
Restaurant Size Recommendations
Suitable for small to mid-sized restaurants, cafes, and quick-service establishments that require a reliable deep-frying solution.
Maintenance Advice
Regularly clean the stainless steel fry tank and basket hanger. Perform routine oil filtration or changes using the 1 1/4" full port drain valve. Periodically check the flue deflector for any obstructions to ensure proper ventilation.
Specifications
| Specifications | |
|---|---|
| Model | 1VEG50M |
| Width | 15.50 Inches |
| Depth | 29.87 Inches |
| Height | 44.75 Inches |
| Working Height | 34.87 Inches |
| Oil Capacity | 45-50 lbs. |
| Temperature Range | 93.3°C to 204.4°C (200°F to 400°F) |
| BTU per Hour | 85,000 BTU |
| Tank Dimensions | 14 x 14 Inches |
| Number of Tanks | 1 |
| Number of Burners | 3 |
| Number of Legs | 4 |
| Gas Inlet Size | 3/4 Inches |
| Drain Valve | 1 1/4 Inches |
| Control Type | Millivolt Controls |
| Fuel Type | Natural Gas |
| Installation Type | Floor/Freestanding |
| Material | Stainless Steel |
| Product Type | Fryer |
