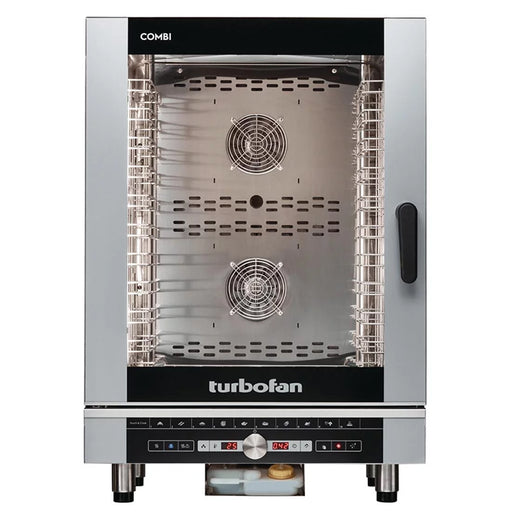

Turbofan EC40D10 32" Full Size 10 Tray Digital / Electric Combi Oven

Contact Us for Pricing? Please fill out the form below to receive a personalized quote.
* Email:
Shipping Address:

Need Help?
Contact one of our experts.

Product Overview

  • Electric Direct Steam Version
  • Hand Shower with fittings and connections included
  • High visibility alphanumeric LED display
  • Programmable automatic pre-heating
  • Self diagnostic operation check before and during use, with detailed description and audible fault warnings
  • Automatic chamber venting control
  • Timed LED cooking chamber lighting
  • Automatic cleaning system with liquid clean system
  • Perfectly smooth cooking chamber walls with rounded edges
  • Adjustable hinges for optimal door seal

Unit shall be a Blue Seal electrically heated Turbofan direct steam injection combination convection steam oven. The oven shall have a stainless steel oven chamber with 10 x full size steam pans capacity, 14.5kW power rating and two 2 speed auto-reversing direction fans. Oven door shall be vented safe touch and feature LED oven chamber lighting. Electronic touch control panel shall provide cooking mode selection, 10 one touch favourite program keys, digital displays for temperature, time, humidity and programs, and a scrolling control knob for operation. Convection, Steam, and Combi cooking modes shall be usable in manual mode and program modes. Unit shall be optional core temp probe ready.

Unit shall include as standard a self contained Automatic cleaning system with Liquid Clean System (LCS). A water hand shower shall be included as standard. Oven shall be able to be bench mounted on 4” feet or mounted on Turbofan oven stand model SK40-10A. Unit shall be supplied in 100% recyclable shipping packaging

Model EC40DIO
Width 32 inches
Depth 28 inches
Height 46 inches
Weight 229 Lbs
Shelf Spacings 2-3/4 inches
Volts 208 Volts
Hertz 60 Hz
Flow Pressure 29-73 PSI
kPa 200-500
Total Hardness 60-90 ppm
pH 7.5
