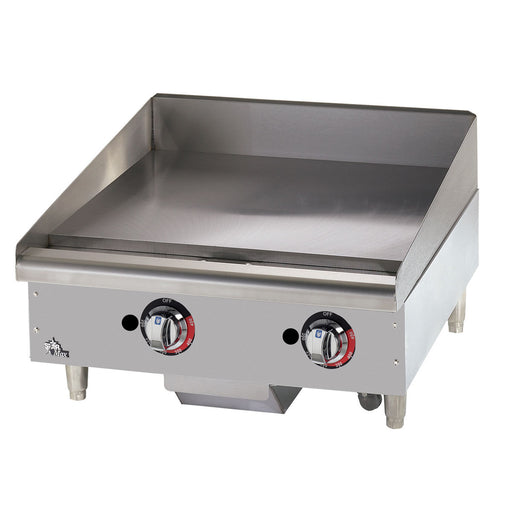

Star 624TF Star-Max 24" Gas Griddle With Thermostatic Control - 56,600 BTU
Product Overview
Star-Max® gas griddles are a perfect match for the budget minded operator. For breakfast, lunch or dinner, the Star-Max griddles out-perform the competition. Star-Max® griddles feature a 1” thick polished steel griddle plate. 28,300 BTU aluminized burner every 12” of width controlled by a embedded modulating thermostatic, 3/4” N.P.T. male gas connection with convertible pressure regulator, and 4” adjustable legs. Griddles operate on Natural gas.
Gas griddles are constructed with stainless steel panel and double wall aluminized steel side panels. Griddle plate is 1” (2.54 cm) thick, 4-1/2” high tapered wrap-around stainless steel splash guard come standard. Unit has a 3-1/4” (8.3 cm) wide front grease trough with grease chute and a 4-1/2 quart (4.26 L) stainless steel grease drawer. Unit is heated by 28,300 BTU aluminized steel burner for every 12” (30.5 cm) of griddle width and is controlled by a modulating thermostat embedded into griddle plate. Thermostat knobs are protected by a stainless steel bull nose front. An automatic safety pilot is provided for each burner. Griddles are supplied with 4” (10.2 cm) high die cast nickel plated steel legs that have a 1-3/8” (3.5 cm) adjustment. Gas connection is 3/4” N.P.T. male and a convertible pressure regulator is provided. Units are approved for installation within 6” (15.2 cm) of combustible and non-combustible surfaces and are UL Gas certified and UL EPH sanitation listed.
| Specifications | |
|---|---|
| Model | 624TF |
| Width | 24 inches |
| Depth | 29 inches |
| Height | 15.5 inches |
| Power Type | Natural Gas |
| Number of Burners | 2 |
| Control Type | Thermostatic |
| Gas Inlet Size | 3/4 inches |
| Total BTU | 56,600 BTU/hr |
| Type | Griddle |
