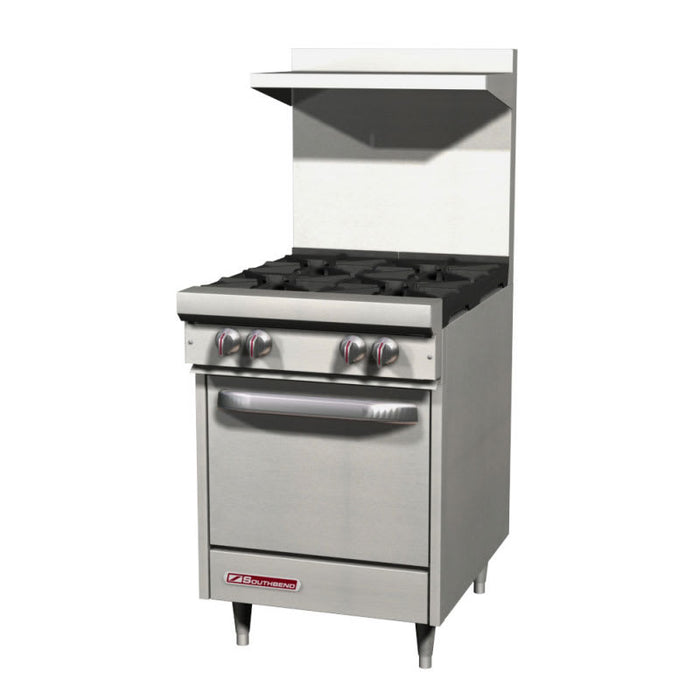

Southbend S24E 24" Natural Gas 4-Burner with Space Saver Oven - 112,000 BTU
Product Overview
- Standard Oven at 35,000 BTUs
- U-shaped heavy duty oven burner
- Quadrant spring doors with chrome handle
- Cook top features 4 non-clog, 28,000 BTU burners
- Removable crumb drawer under the burners to make cleaning easier
- 4 removable, cast iron grate tops
- Factory-installed pressure regulator
- Stainless steel front,sides and removable shelf
- 4-in stainless steel front rail for pans or plates to sit on
- Equipped with flame failure safety device that shuts off the gas supply if the pilot light goes out
- Adjustable oven thermostat from 175-550 degrees F
- Includes metal knobs with a red stripe that lets cook quickly identify the heat setting of each
- Hinged, lower valve panel make accessing gas valve easy
- Cavity insulated with self-supporting rock wool with baffle assembly
- Factory installed pressure regulator
- 2-Position rack guides with 1 removable rack
- 6-in adjustable, stainless steel legs
Description
The Southbend S24E 4-burner natural gas range has a standard oven that operates at 35,000 BTUs per hour. The range's cooktop is built with four 28,000 BTU open burners. There are four removable, cast iron grate tops, and the rear can hold a stock pot that is up to 14-inches in diameter. For thorough cleaning, crumb drawers sit under the burners and easily remove. With the stainless steel front, sides, and removable shelf, cleaning is simpler.
This range has a U-shaped, heavy-duty oven burner that distributes heat evenly throughout the cavity. For safety, a flame failure safety device cuts off the gas supply if the pilot light goes out. It also has two-position rack guides with one removable rack. The snap action thermostat has a range of 175 to 550 degrees Fahrenheit. Since the Southbend S24E 4-burner natural gas range has 6-inch tall legs, keeping the area under the unit clean is simple.
Specifications
| Specifications | |
|---|---|
| Model | S24E |
| Width | 24 inches |
| Depth | 34 inches |
| Height | 59.5 inches |
| Heat | Gas |
| Gas Type | Natural Gas |
| Range Configuration | Burners |
| Burner Type | Open |
| Open Burner BTU (ea) | 33000 |
| Installation Type | Freestanding |
| Burner Configuration | Standard |
| Base | Space Saver Oven |
| Number of Ovens | 1 Oven |
| Racks Per Standard Oven | 1 |
| Rack Positions Per Standard Oven | 2 |
| Max Temp | 550 |
| Number of Burners | 4 |
| Burner Style | Grates |
| Controls | Manual |
| Gas Inlet Size | 3/4 inch |
| BTU/Burner | 33,000 |
| Weight | 475 lbs |
Files
