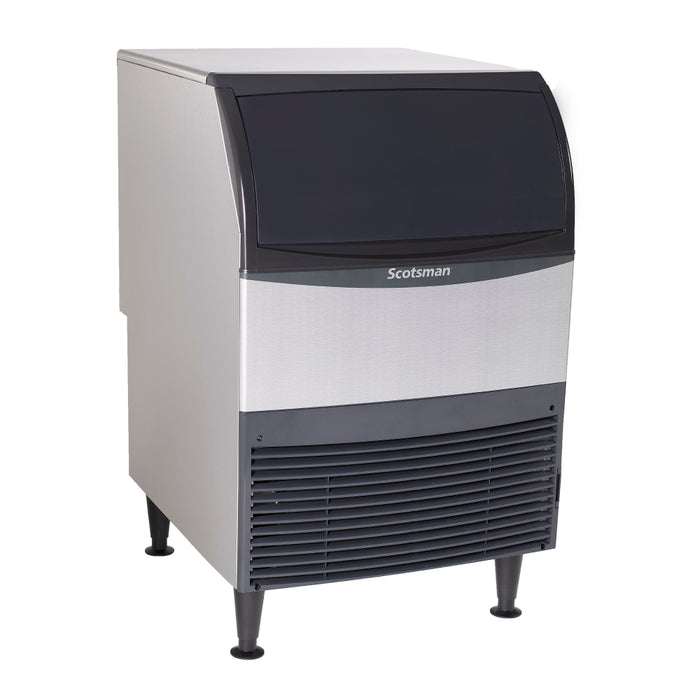

Scotsman UN324AX-1 24" Air Cooled Undercounter Self Contained Nugget Ice Machine - 340 Lbs.
Product Overview
- 24" undercounter ice machine
- Produces up to 340 Lbs. every 24h and stores up to 80 Lbs. of chewable nugget ice
- Features heavy duty front panel and corrosion-resistant aluminum alloy side panels

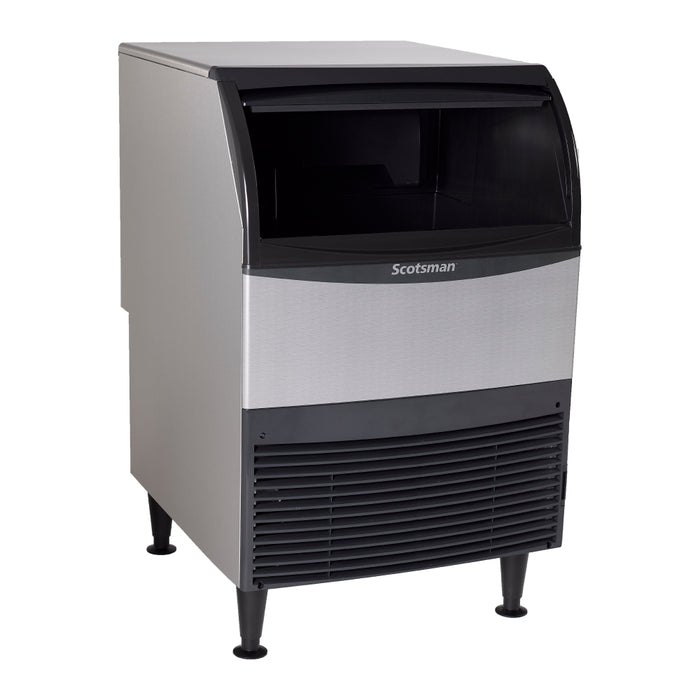

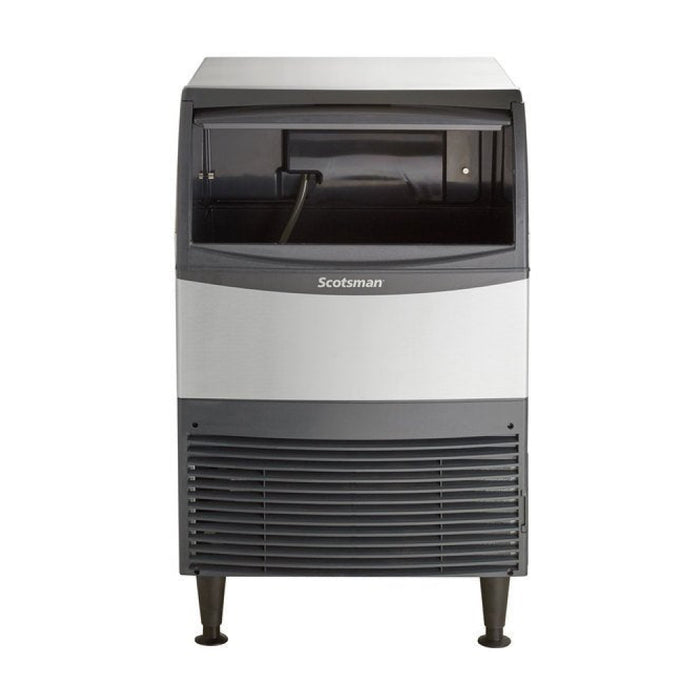

- Ergonomic slide back door allows easy access to ice in the bin
- Environmentally friendly R290 refrigerant
- Unit specific QR code for quick access to service manuals, cleaning guides and warranty history
- Includes one ice scoop, and adjustable legs for quick setup
Description
The Scotsman UN324AX-1 24" Undercounter Ice Machine is a solution for establishments needing a consistent supply of chewable ice. Designed for healthcare, foodservice, and school applications, this air-cooled unit produces up to 340 Lbs. of nugget ice per day, with an integrated storage bin holding 80 Lbs. Its compact 24" width allows for placement in tight spaces, making it a versatile choice for various commercial kitchen layouts.
Constructed for reliability and ease of use, the UN324AX-1 features a stainless steel evaporator for maximum durability and greaseless bearings to minimize maintenance needs. An external air filter simplifies cleaning, contributing to the unit's longevity and performance. Access to ice is convenient with a slide-back door, and operation is straightforward thanks to an intuitive control panel. An ice scoop and power cord are included for immediate setup.
This model meets federal energy efficiency requirements and uses R290 refrigerant, aligning with environmental responsibility. It offers efficient ice production while maintaining a minimal environmental impact. The UN324AX-1 delivers the dependable performance expected from commercial ice-making equipment.
Restaurant Size Recommendations
Suitable for mid-volume cafes, small restaurants, or specialized healthcare facilities that require a steady supply of chewable nugget ice. Its daily production and storage capacity can support operations with consistent demand for ice in beverages or patient care.
Maintenance Advice

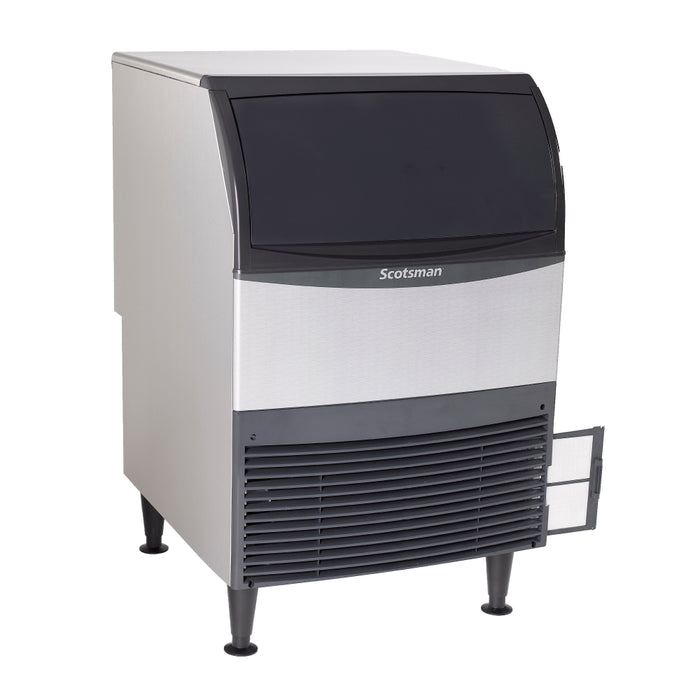

Clean the external air filter to ensure efficient operation and prevent overheating. Periodically check and clean the internal components to maintain ice quality and production. For optimal performance, ensure proper water filtration as recommended by Scotsman.
Manufacturer's Warranty:
Scotsman provides a 3-year warranty on parts and labor for all components, with 5-year coverage for the evaporator and 5-year parts coverage for the compressor.
Specifications
| Specifications | |
|---|---|
| Model | UN324AX-1 |
| Width | 24 Inches |
| Depth | 28.50 Inches |
| Height | 39 Inches |
| 24 Hour Ice Yield | 340 Lbs. |
| Storage Capacity | 80 Lbs. |
| Ice Type | Chewable Nugget Ice |
| Refrigerant | R290 |
| Voltage | 115 V |
| Hertz | 60 Hz |
| Phase | 1 Ph |
| Amperage | 15 Amps |
| Condenser Type | Air Cooled |
| Energy Consumption | 4.92 kWh per 100 Lbs. |
| Water Usage | 12 gal. per 100 Lbs. |
| Water Pressure | 20 - 80 PSIG |
| Installation Type | Undercounter |
| Material | Stainless Steel |
| Product Type | Ice Machine |
