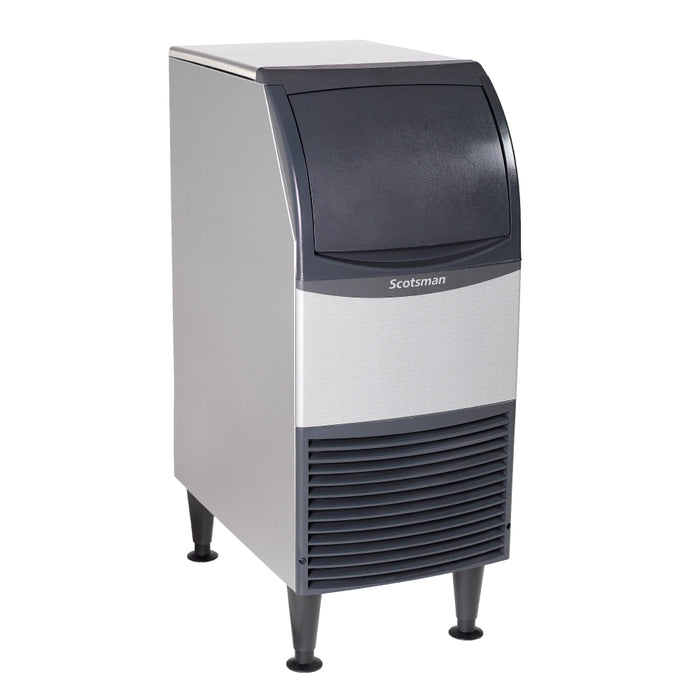

Scotsman UN0815AX-1 15" Air Cooled Undercounter Self-Contained Nugget Ice Machine - 99 Lbs.
Product Overview
- 15" undercounter ice machine, ADA-compliant
- Produces up to 99 Lbs. every 24h and stores up to 36 Lbs. of chewable nugget ice
- Features heavy duty front panel and corrosion-resistant aluminum alloy side panels

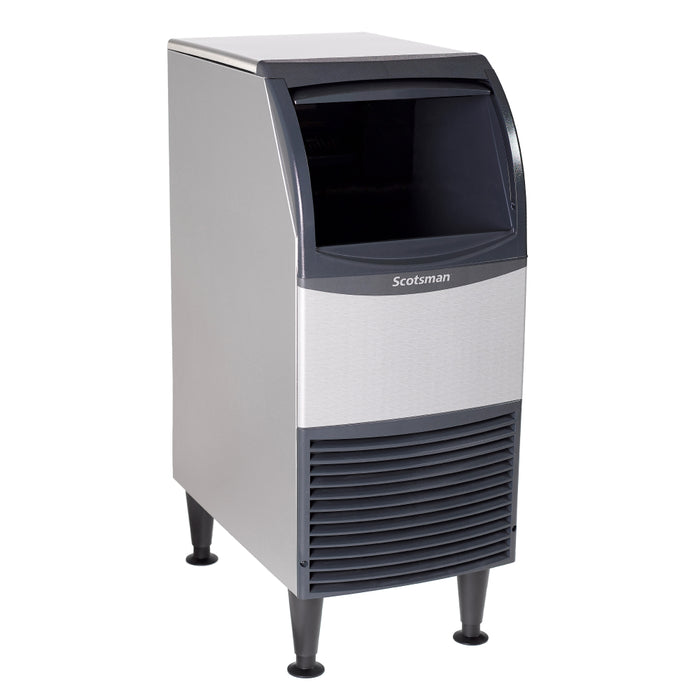

- Ergonomic slide back door allows easy access to ice in the bin
- Unit specific QR code for quick access to service manuals, cleaning guides and warranty history
- Includes one ice scoop, and adjustable legs for quick setup
Description

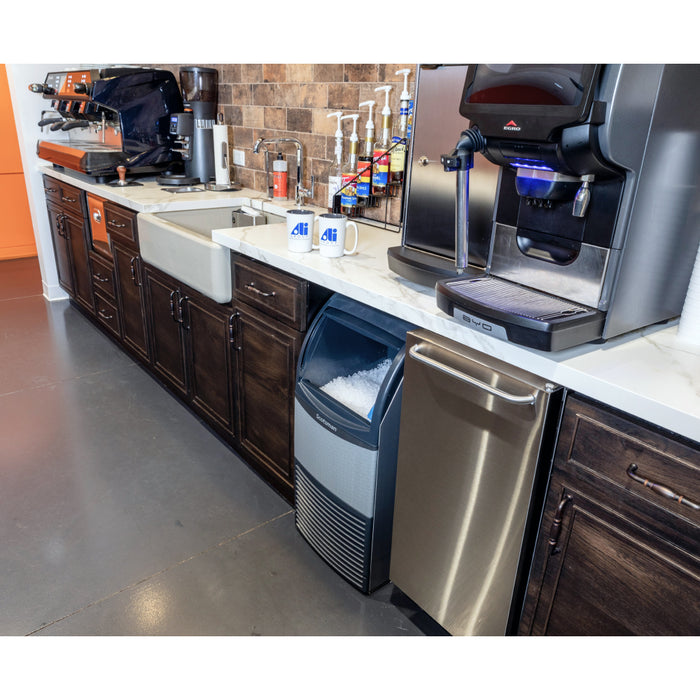

The Scotsman UN0815AX-1 15" Undercounter Self-Contained Ice Machine delivers refreshing nugget ice, ideal for cafes, bars, small restaurants, and office breakrooms. Its compact design fits easily into tight spaces, making it a valuable addition where space is limited but demand for quality ice is consistent. This unit produces chewable nugget ice, favored for beverages and specialty drinks.
Built for lasting performance, the UN0815AX-1 features a durable stainless steel evaporator and auger. The front panel is rust-free, while the side panels are made from corrosion-resistant aluminum alloy, ensuring longevity in commercial environments. A front-breathing design allows for zero-clearance installation on the sides, offering placement flexibility. An ergonomic slide-back door grants easy access to the ice bin.
Capable of producing up to 99 Lbs. of nugget ice per day and storing 36 Lbs., this ice machine keeps up with moderate demand. The unit utilizes R290 refrigerant, a non-ozone depleting option. This unit is specifically engineered to fit under ADA-compliant countertops with an optional floor mount kit, making it highly adaptable for diverse kitchen layouts.
Restaurant Size Recommendations
Suitable for small operations such as cafes, juice bars, office breakrooms, or small bars. With its production and storage capacity, it reliably handles moderate daily ice needs without requiring extensive space.
Maintenance Advice

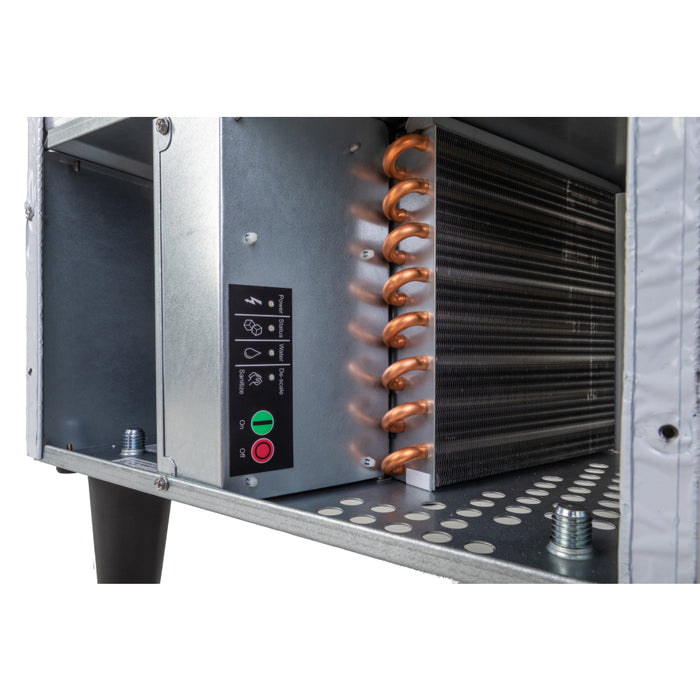

Regularly clean of the ice-making system and bin to prevent mineral buildup and ensure ice quality. Check the condenser coil periodically for dust and debris, cleaning it to ensure proper airflow and prevent overheating. Routinely inspect water lines and the drain for blockages to prevent issues and ensure smooth operation.
Manufacturer's Warranty:
Scotsman provides a 3-year warranty on parts and labor for all components, with 5-year coverage for the evaporator and 5-year parts coverage for the compressor.
Specifications
| Specifications | |
|---|---|
| Model | UN0815AX-1 |
| Width | 15 Inches |
| Depth | 24 Inches |
| Height | 38 Inches |
| 24 Hour Ice Yield | 99 Lbs. |
| Storage Capacity | 36 Lbs. |
| Ice Type | Chewable Nugget Ice |
| Refrigerant | R290 |
| Voltage | 115 V |
| Hertz | 60 Hz |
| Phase | 1 Ph |
| Amperage | 15 Amps |
| Condenser Type | Air Cooled |
| Energy Consumption | 5.64 kWh per 100 Lbs. |
| Water Usage | 12 gal. per 100 Lbs. |
| Water Pressure | 20 - 80 PSIG |
| Installation Type | Undercounter |
| Material | Stainless Steel |
| Product Type | Ice Machine |
