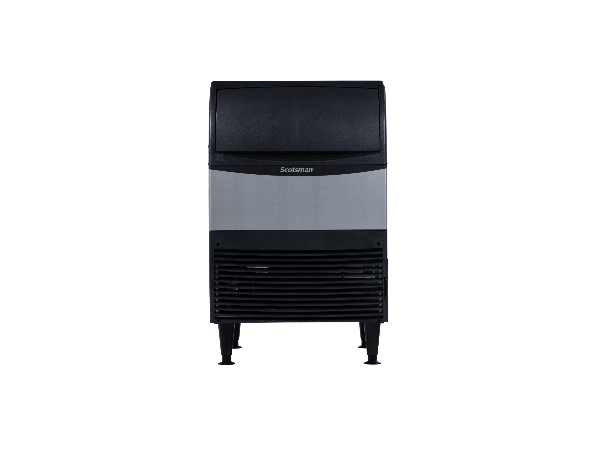

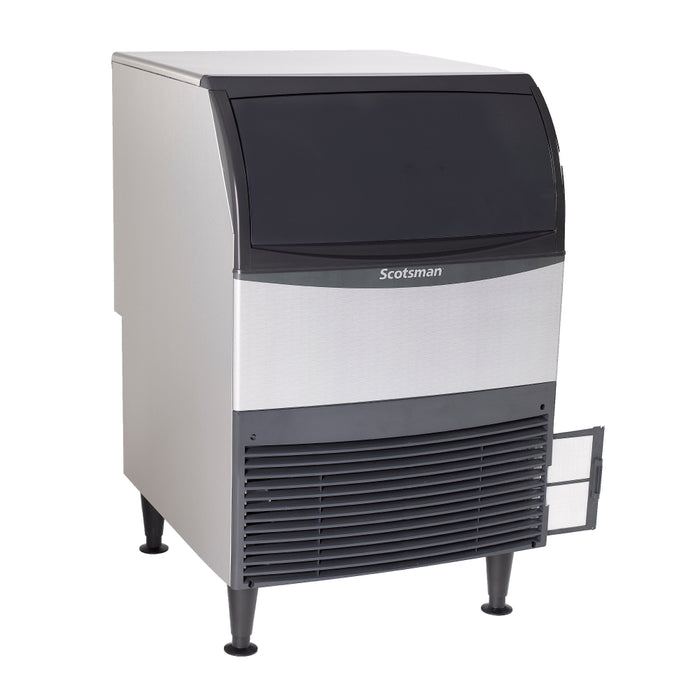

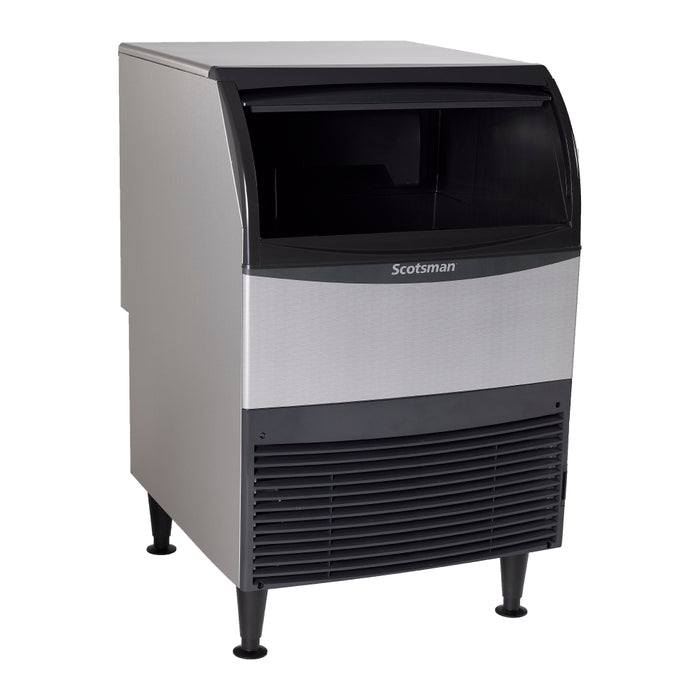

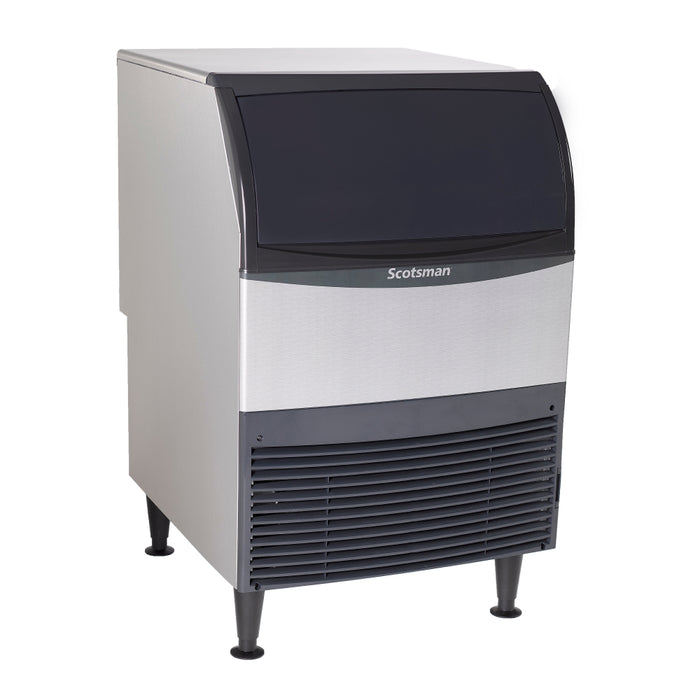

Scotsman UF424AX-1 24" Air Cooled Undercounter Self-Contained Flake Ice Machine with Storage - 440 Lbs.
Product Overview
- 24" undercounter ice machine
- Produces up to 440 Lbs. every 24h and stores up to 80 Lbs. of flake ice
- Features heavy duty front panel and corrosion-resistant aluminum alloy side panels
- Ergonomic slide back door allows easy access to ice in the bin
- Environmentally friendly R290 refrigerant
- Unit specific QR code for quick access to service manuals, cleaning guides and warranty history
- Includes one ice scoop, and adjustable legs for quick setup
Description
The Scotsman UF424AX-1 24" Undercounter Ice Machine is an efficient solution for operations requiring ice. This self-contained unit produces up to 440 Lbs. of flake ice daily, making it ideal for healthcare facilities, salad bars, beverage service, and fresh seafood displays. Its compact 24" width allows for flexible placement in tight kitchen spaces or under counters, providing high production without occupying excessive floor space.
Built for lasting performance, the UF424AX-1 features a durable stainless steel evaporator and greaseless, sealed bearings that reduce maintenance needs. An external air filter ensures easy cleaning, contributing to consistent operation and ice quality. The intuitive control panel simplifies daily use, and a slide-back door provides convenient access to the 80 Lbs. internal ice storage bin.
This air-cooled model uses environmentally friendly R290 refrigerant, meeting modern energy efficiency standards. With a low energy consumption and water usage, it offers a cost-effective solution for busy commercial environments. The unit ships with a power cord and an ice scoop for immediate setup and use.
Restaurant Size Recommendations
Suitable for small to mid-sized restaurants, cafes, and bars that require a steady supply of flake ice for drinks, food displays, or patient care. Its daily production and storage capacity can support operations with moderate to high ice demand, ensuring ice is readily available throughout service hours.
Maintenance Advice
Clean the external air filter frequently to maintain airflow and efficiency. Periodically clean and sanitize the ice machine's interior and bin to prevent scale buildup and ensure sanitary ice production, following the manufacturer's guidelines.
Manufacturer's Warranty:
Scotsman provides a 3-year warranty on parts and labor for all components, with 5-year coverage for the evaporator and 5-year parts coverage for the compressor.
Specifications
| Specifications | |
|---|---|
| Model | UF424AX-1 |
| Width | 24 Inches |
| Depth | 28.50 Inches |
| Height | 39 Inches |
| 24 Hour Ice Yield | 440 Lbs. |
| Storage Capacity | 80 Lbs. |
| Ice Type | Soft Flake Ice |
| Refrigerant | R290 |
| Voltage | 115 V |
| Hertz | 60 Hz |
| Phase | 1 Ph |
| Amperage | 15 Amps |
| Condenser Type | Air Cooled |
| Energy Consumption | 4.20 kWh per 100 Lbs. |
| Water Usage | 12 gal. per 100 Lbs. |
| Water Pressure | 20 - 80 PSIG |
| Installation Type | Undercounter |
| Material | Stainless Steel |
| Product Type | Ice Machine |
