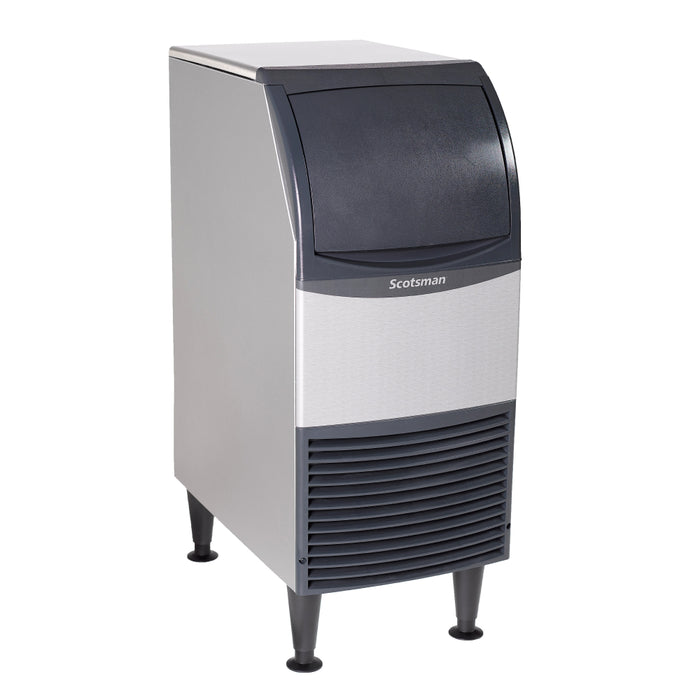

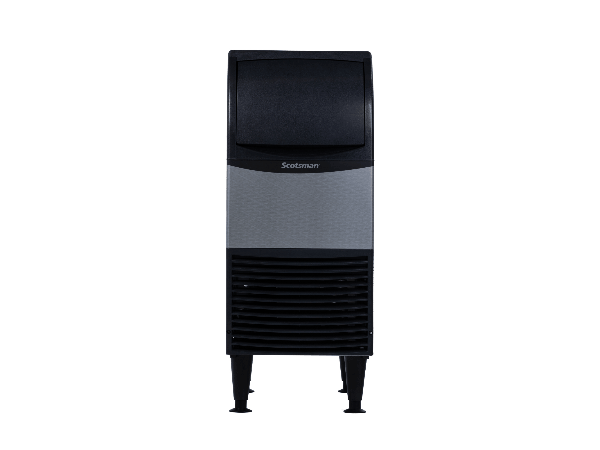

Scotsman UF0915AX-1 15" Air Cooled Undercounter Self-Contained Flake Ice Machine - 96 Lbs.
Product Overview
- 15" undercounter ice machine
- Produces up to 96 Lbs. every 24h and stores up to 36 Lbs. of flake ice
- Features heavy duty front panel and corrosion-resistant aluminum alloy side panels

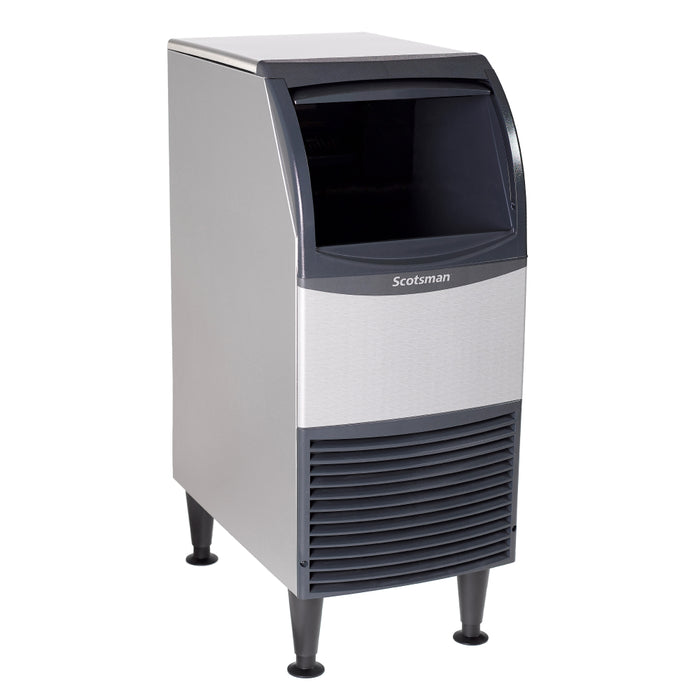

- Ergonomic slide back door allows easy access to ice in the bin
- Unit specific QR code for quick access to service manuals, cleaning guides and warranty history
- Includes one ice scoop, and adjustable legs for quick setup
Description
The Scotsman UF0915AX-1 15" Undercounter Ice Machine delivers up to 96 Lbs. of soft flake ice daily, suitable for various commercial settings like healthcare facilities, schools, and foodservice operations. Its self-contained design and 36 Lbs. storage bin ensure a constant supply of ice within a compact footprint.
Durability is central to the UF0915AX-1's design, featuring a stainless steel evaporator and auger for long-term performance. The front panel resists rust, while the side panels are made from corrosion-resistant aluminum alloy, ensuring a prolonged lifespan in demanding environments. Sealed, maintenance-free bearings further reduce upkeep needs.
It uses environmentally responsible R290 refrigerant, which has zero ozone depletion potential. The front-breathing design eliminates the need for side clearance, offering greater installation flexibility in tight spaces. An ergonomic slide-back door provides convenient access to the ice bin. This unit is specifically engineered to fit under ADA-compliant countertops with an optional floor mount kit, making it highly adaptable for diverse kitchen layouts.
Restaurant Size Recommendations
Suitable for small to medium-volume operations such as cafes, bars, healthcare facilities, or schools needing a steady supply of flake ice. Its daily production and storage capacity are well-suited for establishments with limited space that require ice for beverages, displays, or patient care.
Maintenance Advice
Regularly clean of the ice-making system and bin to prevent mineral buildup and ensure ice quality. Keep the condenser coils clean to maintain operational efficiency and airflow, as the unit is front-breathing. Check the door seals periodically for proper closure to minimize energy loss.
Manufacturer's Warranty:
Scotsman provides a 3-year warranty on parts and labor for all components, with 5-year coverage for the evaporator and 5-year parts coverage for the compressor.
Specifications
| Specifications | |
|---|---|
| Model | UF0915AX-1 |
| Width | 15 Inches |
| Depth | 24 Inches |
| Height | 38 Inches |
| 24 Hour Ice Yield | 96 Lbs. |
| Storage Capacity | 36 Lbs. |
| Ice Type | Soft Flake Ice |
| Refrigerant | R290 |
| Voltage | 115 V |
| Hertz | 60 Hz |
| Phase | 1 Ph |
| Amperage | 15 Amps |
| Condenser Type | Air Cooled |
| Energy Consumption | 5.75 kWh per 100 Lbs. |
| Water Usage | 12 gal. per 100 Lbs. |
| Water Pressure | 20 - 80 PSIG |
| Installation Type | Undercounter |
| Material | Stainless Steel |
| Product Type | Ice Machine |
