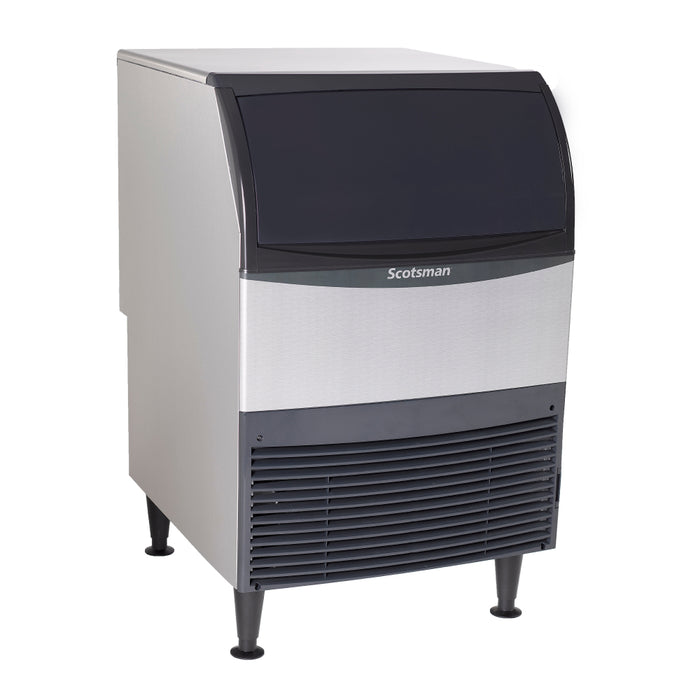

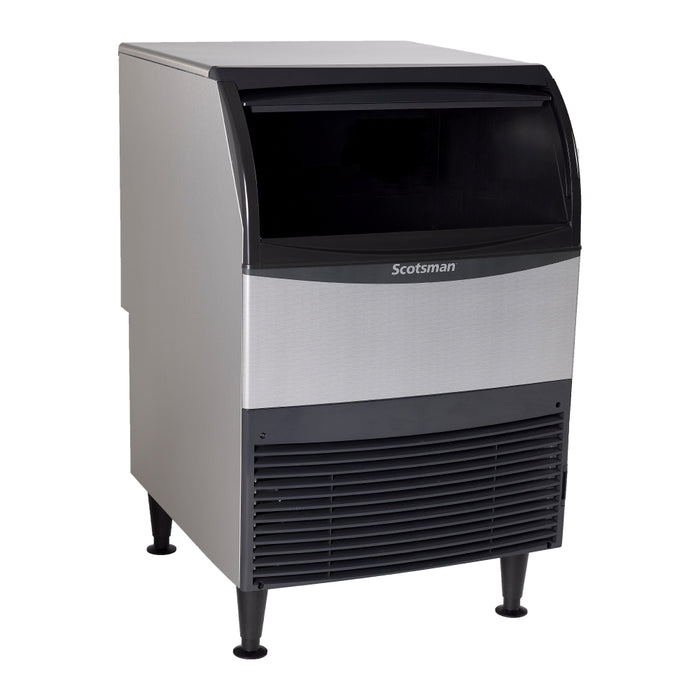

Scotsman UC2724SAX-1 24" Air Cooled Undercounter Self-Contained Small Cube Ice Machine with Storage - 282 Lbs.
Product Overview
- 24" undercounter ice machine
- Produces up to 282 Lbs. every 24h and stores up to 80 Lbs. of small half-diced ice cubes
- Features heavy-duty front panel and corrosion-resistant aluminum alloy side panels for durability

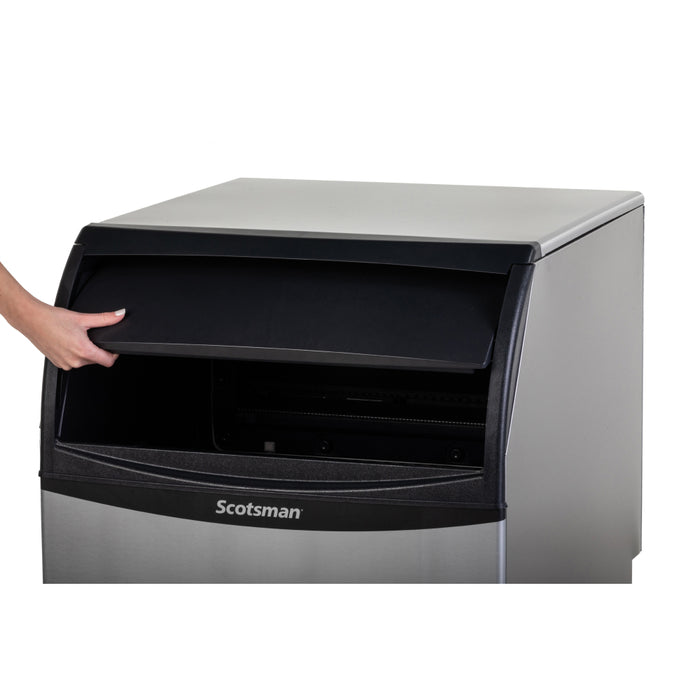

- Ergonomic slide back door allows easy access to ice in the bin
- Environmentally friendly R290 refrigerant
- Unit specific QR code for quick access to service manuals, cleaning guides and warranty history
- Includes one ice scoop, and adjustable legs for quick setup
Description
The Scotsman UC2724MAX-1 24" Undercounter Ice Machine provides efficient ice production for commercial settings where space is at a premium. Producing up to 282 Lbs. of small half-diced cube ice daily and storing 80 Lbs., this unit is an excellent choice for bars, cafes, and small restaurants needing a reliable supply of ice. Its self-contained design ensures a consistent output to keep up with daily demand.
Measuring just 24" wide, the UC2724MAX-1 fits comfortably into tight layouts, aided by its front-breathing system which eliminates the need for side clearance. Construction features a heavy-duty, rust-free front panel and corrosion-resistant aluminum alloy side panels, built for long-term use in demanding kitchen environments.
For user convenience, it includes a removable external air filter for easy maintenance and an ergonomic slide-back door providing quick access to the ice bin. The unit uses R290 refrigerant, and a non-ozone depleting option. It is engineered and assembled to emphasize quality and environmental responsibility while meeting energy efficiency requirements.
Restaurant Size Recommendations
Suitable for small to mid-size commercial operations like coffee shops, bars, or cafes that require a steady, moderate volume of ice. Its daily production and storage capacity effectively supports drink service and other ice needs without occupying excessive floor space.
Maintenance Advice
Periodically clean the removable external air filter to maintain optimal airflow and efficiency. Additionally, the ice machine should be descaled and sanitized according to manufacturer guidelines to prevent mineral buildup and ensure ice quality and hygiene.
Manufacturer's Warranty:
Scotsman provides a 3-year warranty on parts and labor for all components, with 5-year coverage for the evaporator and 5-year parts coverage for the compressor.
Specifications
| Specifications | |
|---|---|
| Model | UC2724MAX-1 |
| Width | 24 Inches |
| Depth | 28.50 Inches |
| Height | 39 Inches |
| 24 Hour Ice Yield | 282 Lbs. |
| Storage Capacity | 80 Lbs. |
| Ice Type | Half-Diced Ice Cubes - Small |
| Refrigerant | R290 |
| Voltage | 115 V |
| Hertz | 60 Hz |
| Phase | 1 Ph |
| Amperage | 15 Amps |
| Condenser Type | Air Cooled |
| Energy Consumption | 6.47 kWh per 100 Lbs. |
| Water Usage | 23.8 gal. per 100 Lbs. |
| Water Pressure | 20 - 80 PSIG |
| Installation Type | Undercounter |
| Material | Stainless Steel |
| Product Type | Ice Machine |
