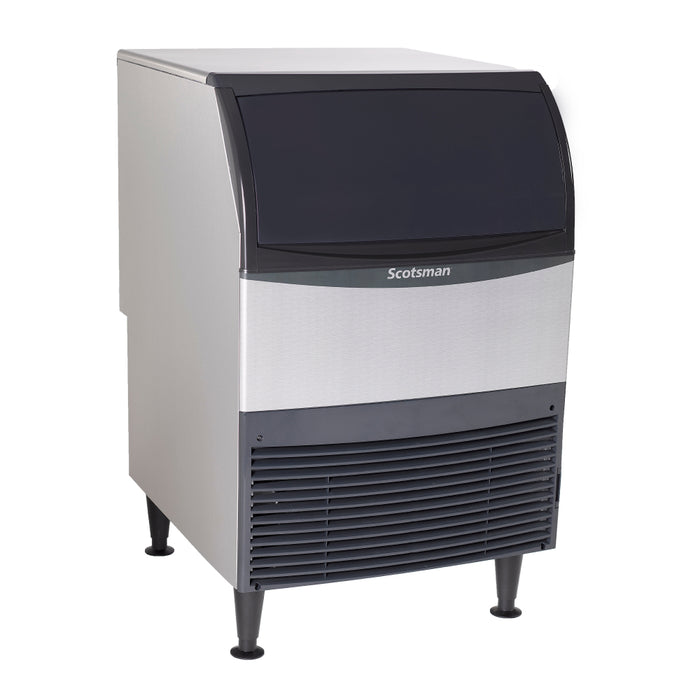

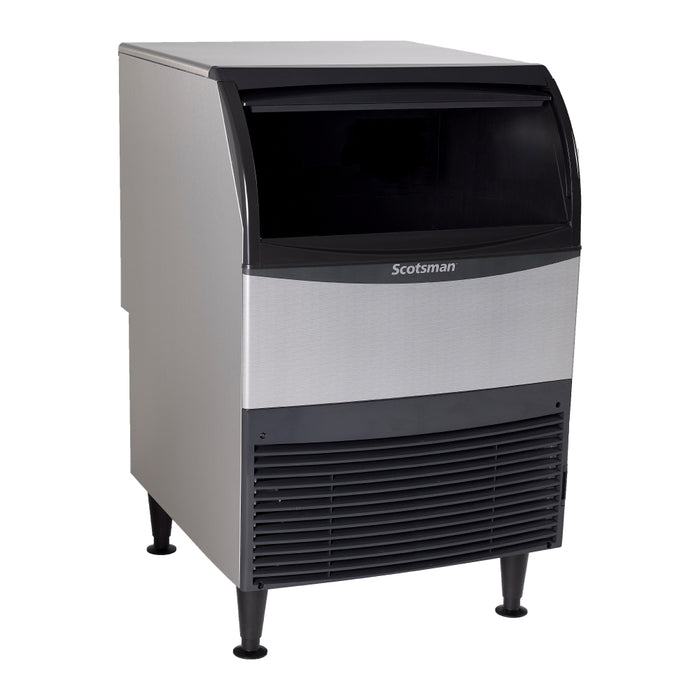

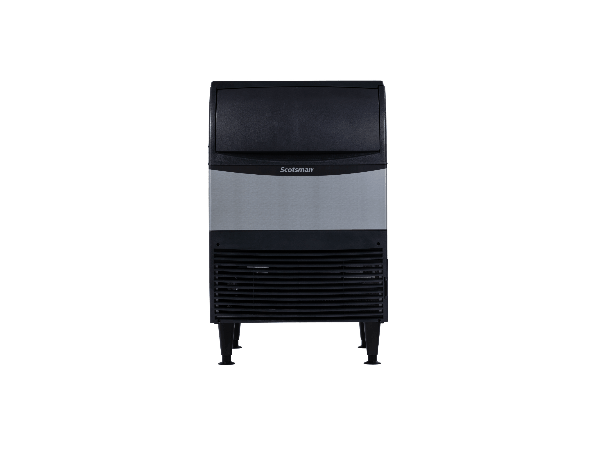

Scotsman UC2024MAX-1 24" Air Cooled Undercounter Self-Contained Medium Cube Ice Machine with Storage - 227 Lbs.
Product Overview
- 24" undercounter ice machine
- Produces up to 227 Lbs. every 24h and stores up to 80 Lbs. of medium ice cubes
- Features heavy-duty front panel and corrosion-resistant aluminum alloy side panels for durability

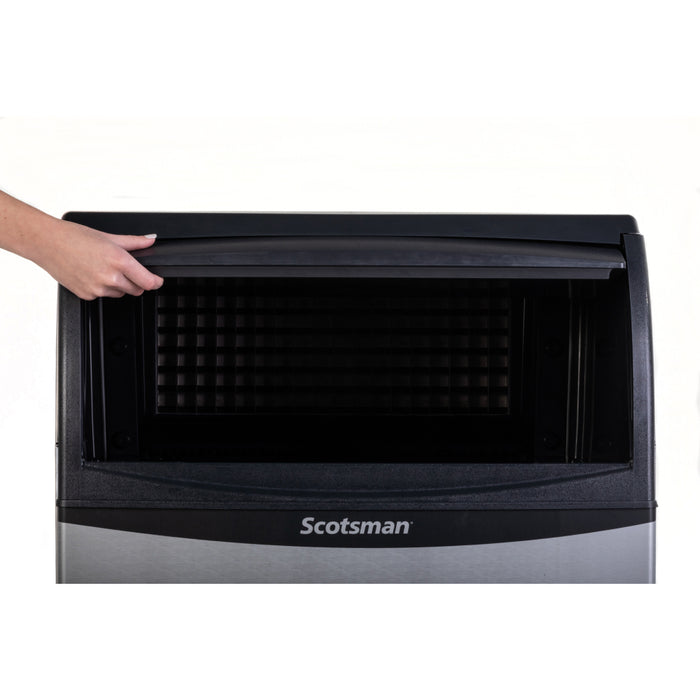

- Ergonomic slide back door allows easy access to ice in the bin
- Environmentally friendly R290 refrigerant
- Unit specific QR code for quick access to service manuals, cleaning guides and warranty history
- Includes one ice scoop, and adjustable legs for quick setup
Description
The Scotsman UC2024MAX-1 24" Undercounter Ice Machine provides a reliable solution for establishments needing consistent ice production in a compact footprint. This self-contained unit is designed to fit in tight spaces, making it ideal for bars, cafes, and small restaurants. It effectively produces up to 227 Lbs. of crystal-clear medium cube ice per day, ensuring your beverage service or food display always has enough ice.
Equipped with an 80 Lbs. storage bin, the UC2024MAX-1 manages high demand without constant refilling. Its durable construction includes a rust-free front panel and corrosion-resistant aluminum alloy side panels, built for long-term commercial use. The unit operates on environmentally friendly R-290 refrigerant, supporting sustainable practices while delivering efficient cooling performance.

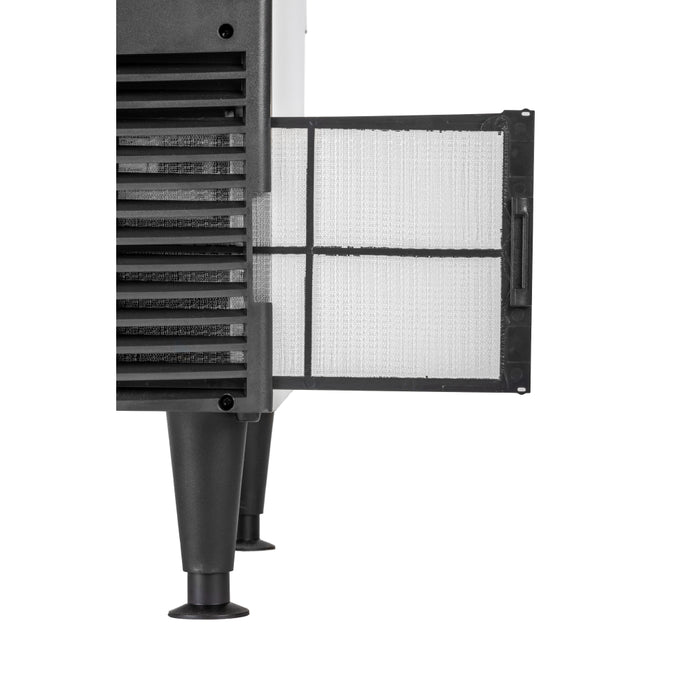

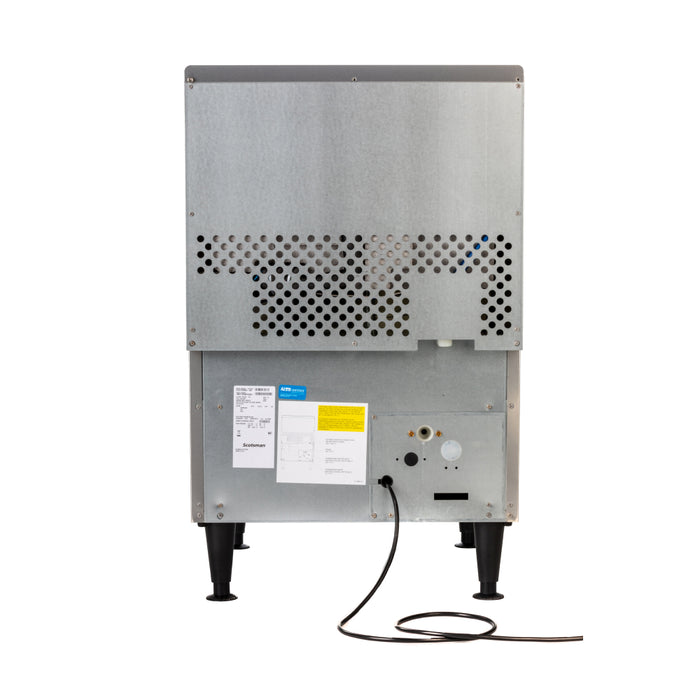

A removable external air filter allows for easy cleaning, maintaining optimal performance and ice quality. With a power cord, NEMA 5-15P plug, ice scoop, and adjustable legs included, this ice machine is ready for immediate setup upon arrival.
Restaurant Size Recommendations
Suitable for small to mid-size cafes, bars, or quick-service restaurants. Its daily production and storage capacity typically handles the ice needs for moderate beverage service or small-scale food display operations.
Maintenance Advice
Regularly clean the removable external air filter to ensure efficient operation. Periodically clean and sanitize the ice machine's interior and storage bin to prevent scale buildup and maintain ice quality. Inspect door gaskets for a proper seal and check the water system for leaks or blockages.
Manufacturer's Warranty:
Scotsman provides a 3-year warranty on parts and labor for all components, with 5-year coverage for the evaporator and 5-year parts coverage for the compressor.
Specifications
| Specifications | |
|---|---|
| Model | UC2024MAX-1 |
| Width | 24 Inches |
| Depth | 28.50 Inches |
| Height | 39 Inches |
| 24 Hour Ice Yield | 227 Lbs. |
| Storage Capacity | 80 Lbs. |
| Ice Type | Medium Ice Cube |
| Refrigerant | R290 |
| Voltage | 115 V |
| Hertz | 60 Hz |
| Phase | 1 Ph |
| Amperage | 15 Amps |
| Condenser Type | Air Cooled |
| Energy Consumption | 5.64 kWh per 100 Lbs. |
| Water Usage | 23.7 gal. per 100 Lbs. |
| Water Pressure | 20 - 80 PSIG |
| Installation Type | Undercounter |
| Material | Stainless Steel |
| Product Type | Ice Machine |
