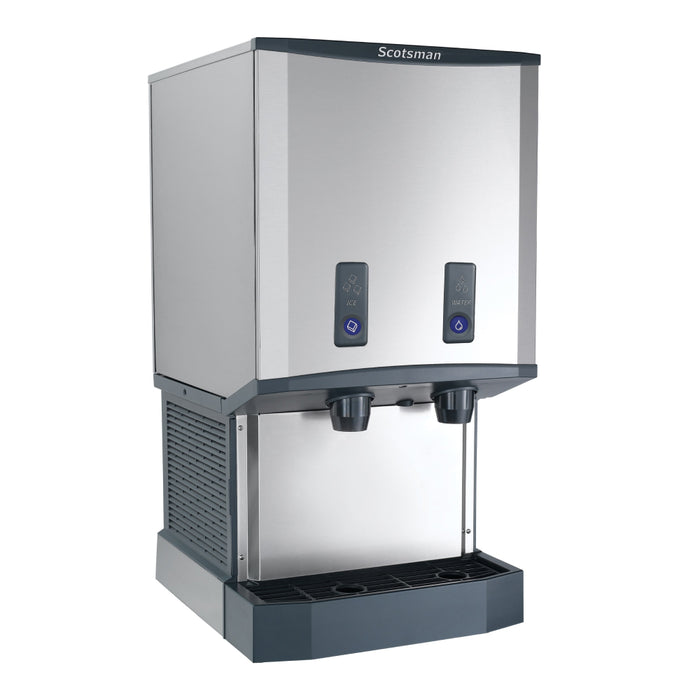

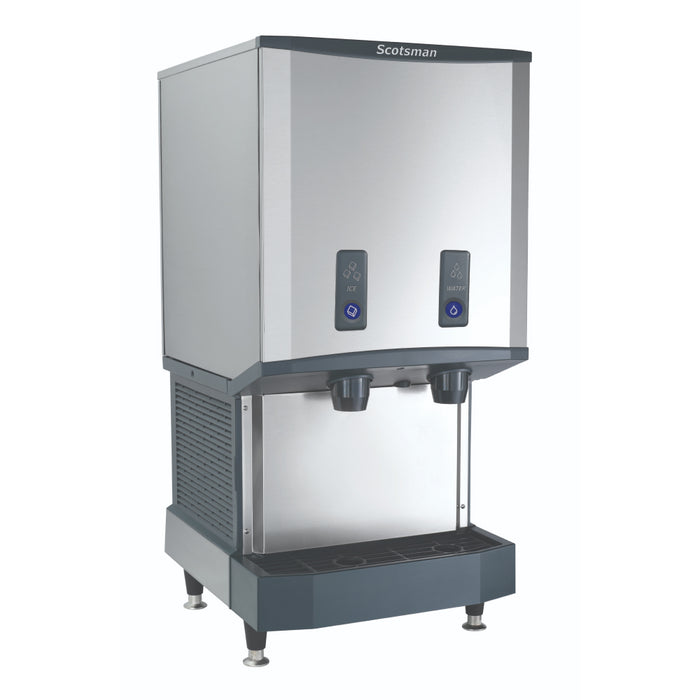

Scotsman HID540ABX-1 21" Meridian Push-Button Air Cooled Countertop Nugget Ice Machine & Water Dispenser - 500 Lbs.
Product Overview
- 21" countertop ice machine & water dispenser
- Stainless steel evaporator and exterior panels for long-term durability
- Produces up to 500 Lbs. every 24h and stores up to 40 Lbs. of nugget chewable ice
- Environmentally friendly R290 refrigerant
- Button activated dispensing mechanism for quick, hygienic operation
- Fully removable bin, spouts, air filter, sink, and grill for easy cleaning & maintenance
- USB port for fast on-site software updates
- Industry-leading energy and water efficiency along with quieter operation
- Ideal for hotels, restaurants, bars, healthcare facilities, etc
Description
The Scotsman HID540ABX-1 Countertop Ice Machine & Water Dispenser produces 500 Lbs. of chewable H² nugget ice daily within a compact 21.25" width. This air cooled unit includes a 40 Lbs. storage capacity, ensuring that chilled water and ice are ready for high traffic environments without taking up excessive counter space.
This model uses a push button dispensing system that incorporates AgION antimicrobial compounds to inhibit the growth of microbes and algae. The exterior panels and evaporator are made of stainless steel to provide longevity in commercial zones. A front accessible air filter and removable bin parts allow staff to maintain hygiene standards with minimal effort during daily operations.
Utilizing R290 refrigerant, the system provides high energy efficiency with a quiet operating profile. The dispenser features LED diagnostic lights to help identify service needs, and a USB drive port allows for quick software updates. Sealed bearings eliminate the need for frequent lubrication, while a unit specific QR code gives staff quick access to manuals and warranty history logs.
- Restaurant Size Recommendation: Suitable for medium to large healthcare facilities, office breakrooms, or quick service beverage stations needing a 500 lbs. production capacity per day.
- Maintenance Advice: Clean the air filter and removable bin components every week, and use the unit specific QR code to track service history and ensure the bearings stay clean.
- Manufacturer's Warranty: Scotsman provides a 3 year parts and labor warranty on all components and a 5 year parts warranty on the compressor and condenser. Coverage applies to commercial installations in North, South, and Central America.
Specifications
| Specifications | |
|---|---|
| Model | HID540ABX-1 |
| Width | 21.25 Inches |
| Depth | 24.38 Inches |
| Height | 41 Inches |
| 24 Hour Ice Yield | 500 Lbs. |
| Sotarage Capacity | 40 Lbs. |
| Ice Type | Nugget Chewable Ice |
| Refrigerant | R290 |
| Voltage | 115 V |
| Hertz | 60 Hz |
| Phase | 1 Ph |
| Amperage | 15 Amps |
| Condenser Type | Air Cooled |
| Dispensing Method | Push-Button |
| Energy Consumption | 4.8 kWh per 100 Lbs. |
| Water Usage | 12 gal per 100 Lbs. |
| Watter Pressure | 20 - 80 PSIG |
| Installation Type | Countertop |
| Material | Stainless Steel |
| Product Type | Ice Machine & Water Dispenser |
