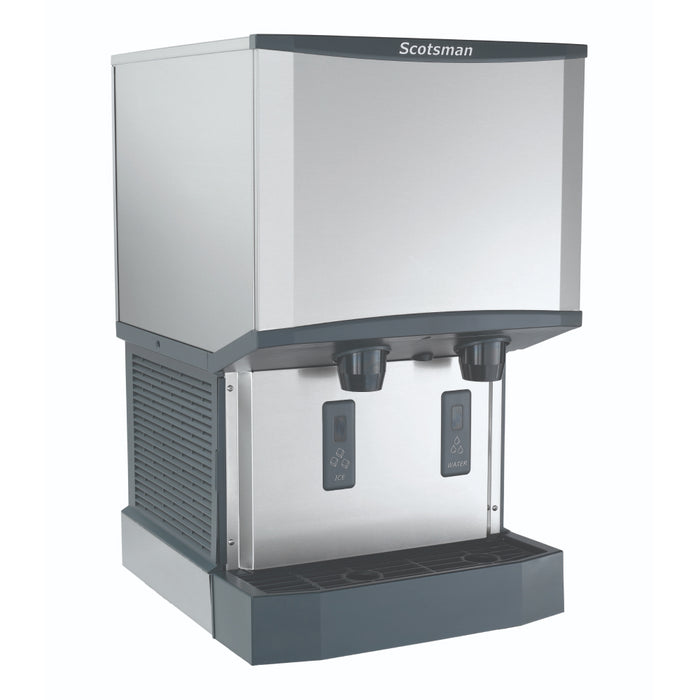

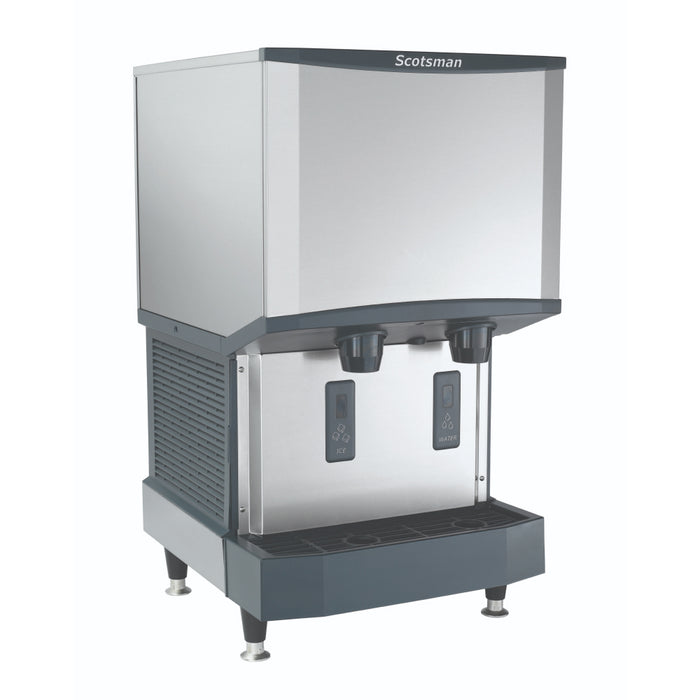

Scotsman HID525AX-1 21" Meridian Touch-Free Air Cooled Countertop Nugget Ice Machine & Water Dispenser - 500 Lbs.
Product Overview
- 21" countertop ice machine & water dispenser
- Stainless steel evaporator and exterior panels for long-term durability
- Produces up to 500 Lbs. every 24h and stores up to 25 Lbs. of nugget chewable ice
- Environmentally friendly R290 refrigerant
- Touch-free, infrared dispensing mechanism for hygienic operation
- Fully removable bin, spouts, air filter, sink, and grill for easy cleaning & maintenance
- USB port for fast on-site software updates
- Industry-leading energy and water efficiency along with quieter operation
- Ideal for hotels, restaurants, bars, healthcare facilities, etc
Description
The Scotsman HID525AX-1 Countertop Ice Machine & Water Dispenser produces 500 Lbs. of chewable H² nugget ice daily within a compact 21.25" width. This air cooled unit includes a 25 Lbs. storage capacity, ensuring that chilled water and ice are ready for high traffic environments without taking up excessive counter space.
Its infrared sensor allows for touch-free dispensing of ice and water to prevent cross contamination in busy environments, and integrates AgION antimicrobial protection into molded components to inhibit the growth of microbes. The exterior panels and evaporator are made of stainless steel to provide longevity in commercial zones. A front accessible air filter and removable bin parts allow staff to maintain hygiene standards with minimal effort during daily operations.
Utilizing R290 refrigerant, the system provides high energy efficiency with a quiet operating profile. The dispenser features LED diagnostic lights to help identify service needs, and a USB drive port allows for quick software updates. Sealed bearings eliminate the need for frequent lubrication, while a unit specific QR code gives staff quick access to manuals and warranty history logs.
- Restaurant Size Recommendation: Suitable for small to medium healthcare facilities, office breakrooms, or quick service beverage stations needing a 500 lbs. production capacity per day.
- Maintenance Advice: Clean the air filter and removable bin components every week, and use the unit specific QR code to track service history and ensure the bearings stay clean.
- Manufacturer's Warranty: Scotsman provides a 3 year parts and labor warranty on all components and a 5 year parts warranty on the compressor and condenser. Coverage applies to commercial installations in North, South, and Central America.
Specifications
| Specifications | |
|---|---|
| Model | HID525AX-1 |
| Width | 21.25 Inches |
| Depth | 24.38 Inches |
| Height | 35 Inches |
| 24 Hour Ice Yield | 500 Lbs. |
| Sotarage Capacity | 25 Lbs. |
| Ice Type | Nugget Chewable Ice |
| Refrigerant | R290 |
| Voltage | 115 V |
| Hertz | 60 Hz |
| Phase | 1 Ph |
| Amperage | 15 Amps |
| Condenser Type | Air Cooled |
| Dispensing Method | Touch-Free |
| Energy Consumption | 4.8 kWh per 100 Lbs. |
| Water Usage | 12 gal per 100 Lbs. |
| Watter Pressure | 20 - 80 PSIG |
| Installation Type | Countertop |
| Material | Stainless Steel |
| Product Type | Ice Machine & Water Dispenser |
