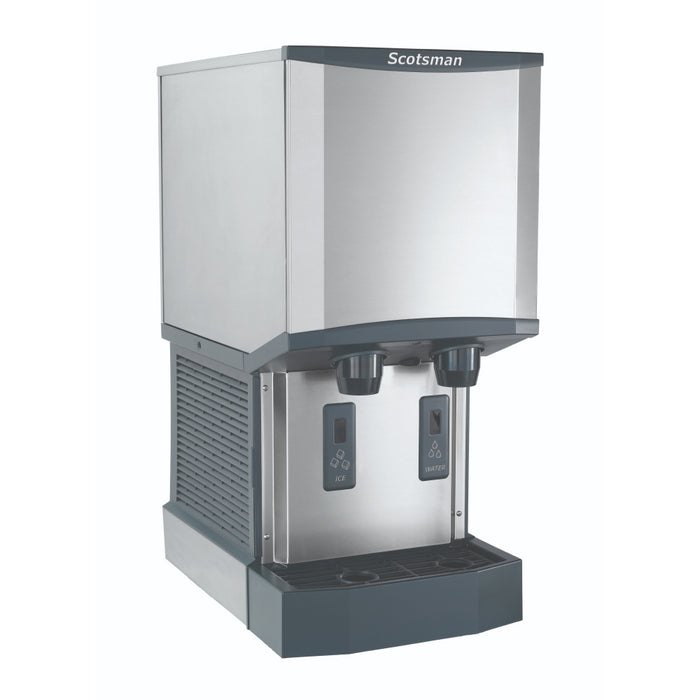

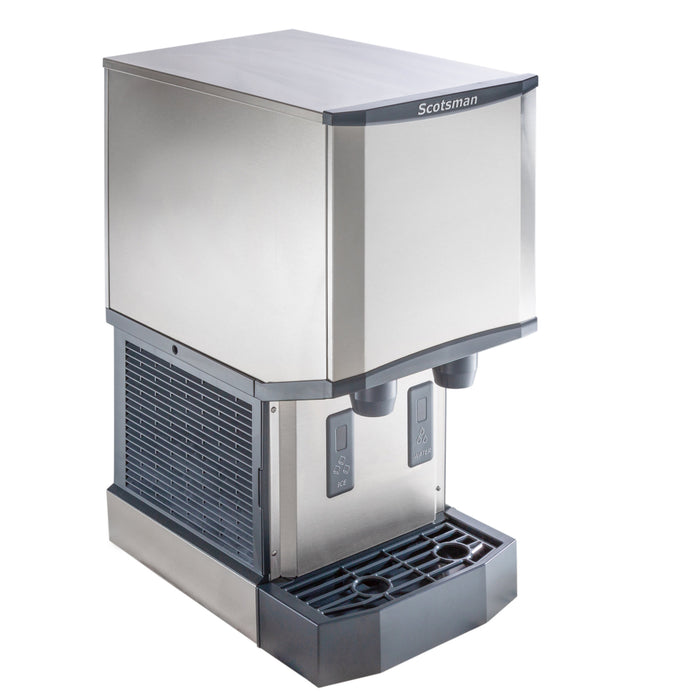

Scotsman HID312AX-1 16" Meridian Touch-Free Air Cooled Countertop Nugget Ice Machine & Water Dispenser - 320 Lbs.
Product Overview
- 16" countertop ice machine & water dispenser
- Stainless steel evaporator and exterior panels for long-term durability
- Produces up to 320 Lbs. every 24h and stores up to 12 Lbs. of nugget chewable ice
- Environmentally friendly R290 refrigerant
- Touch-free infrared sensor dispensing mechanism for hygienic operation
- Fully removable bin, spouts, air filter, sink, and grill for easy cleaning & maintenance
- USB port for fast on-site software updates
- Industry-leading energy and water efficiency along with quieter operation
- Ideal for hotels, restaurants, bars, healthcare facilities, etc
Description
The Scotsman HID312AX-1 16" Meridian Touch-Free Countertop Ice Machine & Water Dispenser is built for high-demand commercial environments where sanitation, reliability, and space efficiency are non-negotiable priorities. This machine produces up to 320 Lbs. and stores up to 12 Lbs. of H² Nugget Ice per day; and dispenses water via touch-free infrared sensor mechanism, delivering quick and hygienic operation. Designed with a stainless-steel evaporator and exterior panels, intuitive LED diagnostic lights, a unit-specific QR code for instant access to service documentation, and a USB port for fast on-site software updates.
AgION® and additional antimicrobial compounds are molded directly into key internal components to actively inhibit the growth of bacteria, mold, and algae. The sealed refrigeration system further limits exposure to airborne contaminants, while the front-accessible, removable air filter and fully removable bin, spouts, sink, and grill make routine sanitation straightforward and efficient. Sealed, maintenance-free bearings reduce the need for scheduled preventative maintenance, extending machine life and lowering long-term service costs.

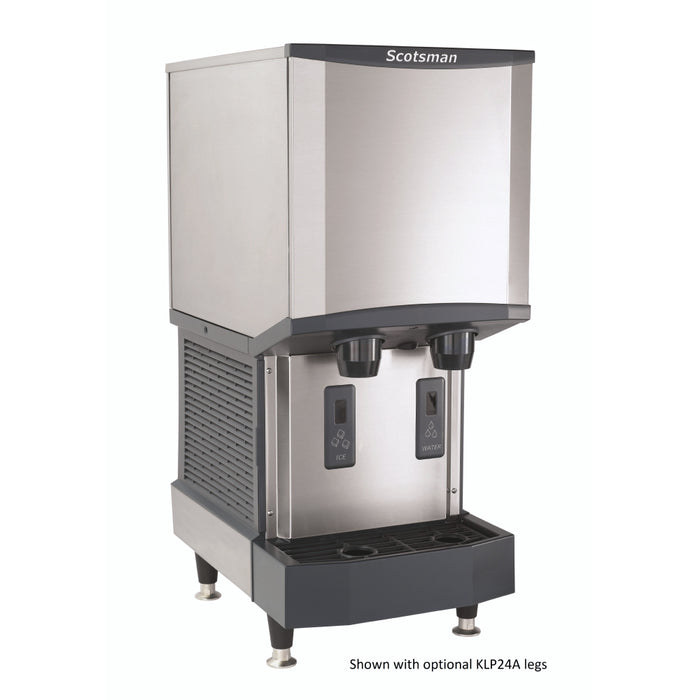

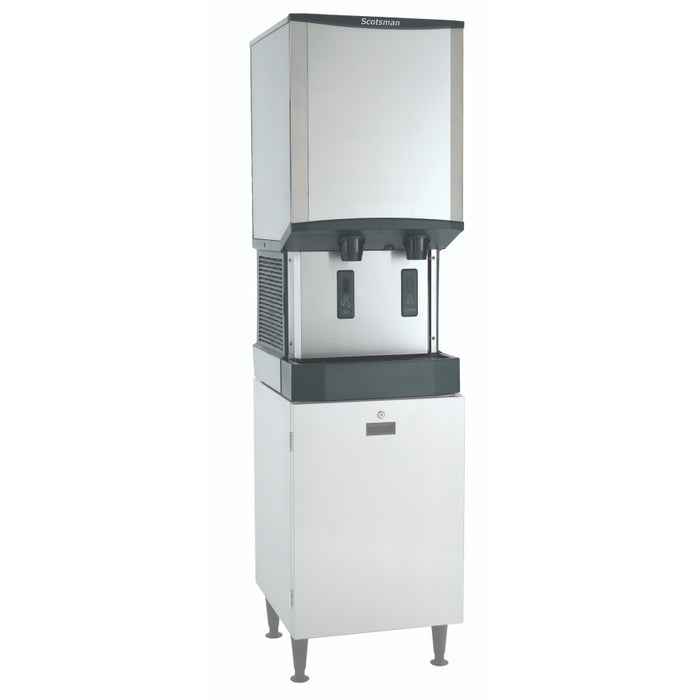

Intuitive LED diagnostic lights allow to identify issues faster, while the USB port enables quick software updates directly on-site without requiring support. The unit-specific QR code gives instant access to manuals and warranty history. Compatible accessories include KLP24A adjustable legs and HST16-A or HST16B-A machine stands, offering flexible installation configurations to suit different counter heights and kitchen layouts.
- Restaurant Size Recommendation: Suitable for small and mid-size foodservice operations including cafés, fast-casual restaurants, hotel lobby beverage stations, healthcare facilities, and corporate dining rooms with 100 - 200 guests per day.
- Maintenance Advice: The removable air filter should be cleaned on a regular schedule to sustain optimal airflow. The bin, spouts, sink, and grill are all fully removable for thorough periodic sanitation. Routine visual inspection of the water inlet and drain connection is advised.
- Manufacturer's Warranty: Scotsman provides a 3-year parts and labor warranty and a 5-year parts warranty on the compressor and condenser. Coverage applies to commercial installations in North, South, and Central America.
Specifications
| Specifications | |
|---|---|
| Model | HID312AX-1 |
| Width | 16.25 Inches |
| Depth | 24.38 Inches |
| Height | 35 Inches |
| 24 Hour Ice Yield | 320 Lbs. |
| Sotarage Capacity | 12 Lbs. |
| Ice Type | Nugget Chewable Ice |
| Refrigerant | R290 |
| Voltage | 115 V |
| Hertz | 60 Hz |
| Phase | 1 Ph |
| Amperage | 15 Amps |
| Condenser Type | Air Cooled |
| Dispensing Method | Touch-Free |
| Energy Consumption | 4.11 kWh per 100 Lbs. |
| Water Usage | 12 gal per 100 Lbs. |
| Watter Pressure | 20 - 80 PSIG |
| Installation Type | Countertop |
| Material | Stainless Steel |
| Product Type | Ice Machine & Water Dispenser |
