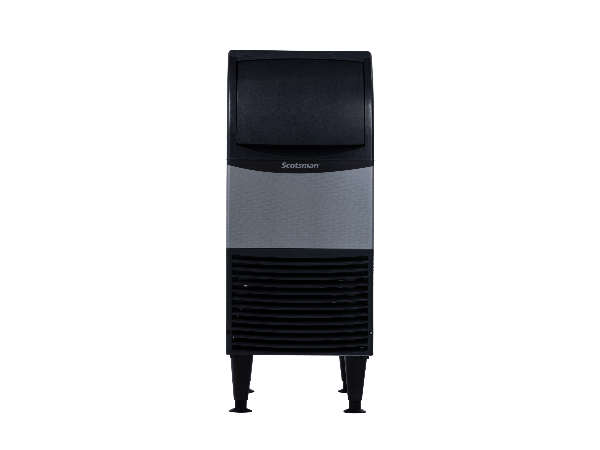

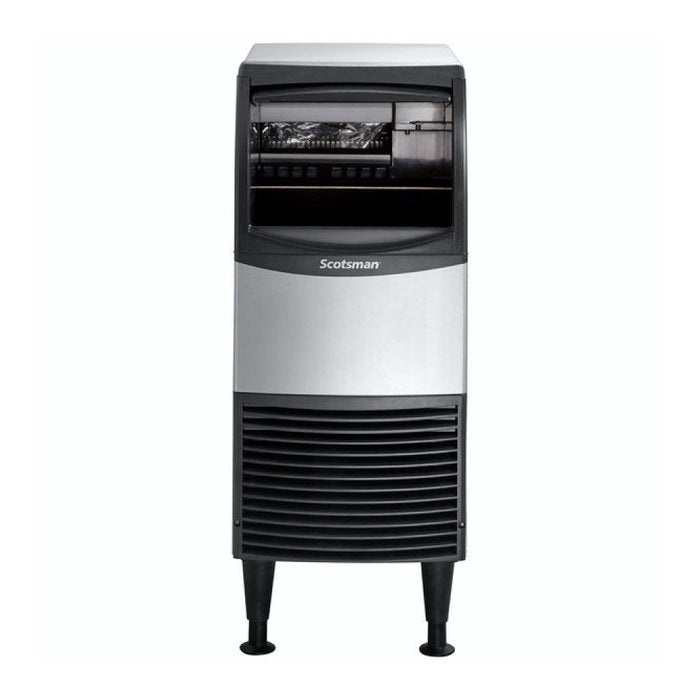

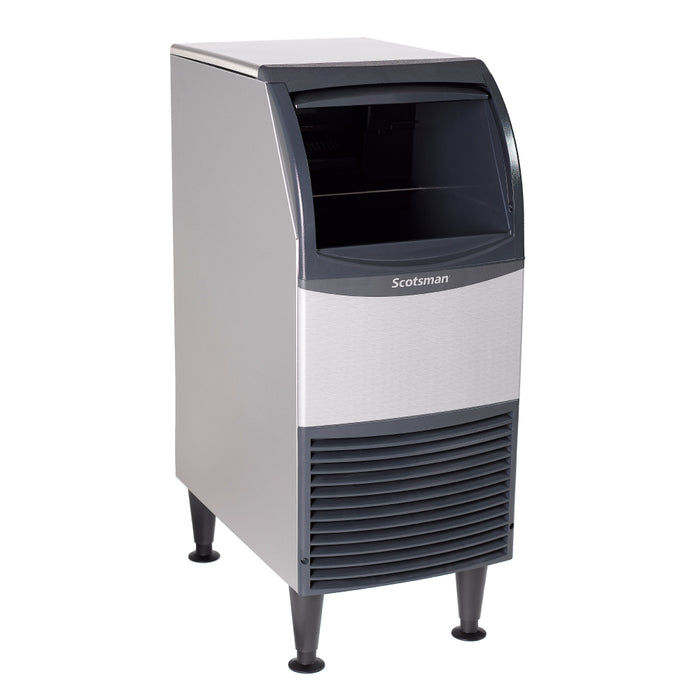

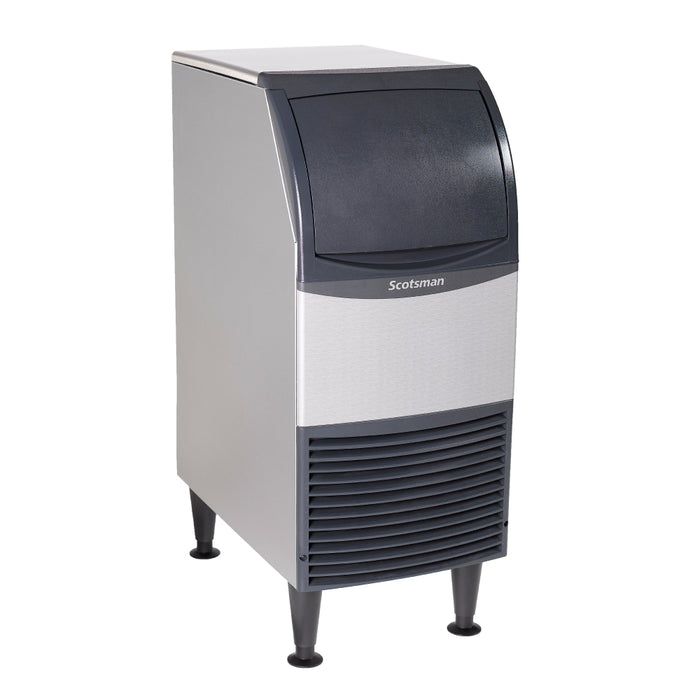

Scotsman CU0415MAX-1 15" Prodigy Air Cooled Undercounter Large Cube Ice Machine - 60 Lbs.
Product Overview
- 15" undercounter ice machine
- Produces up to 60 Lbs. every 24h and stores up to 36 Lbs. of large size ice cubes
- Environmentally friendly R290 refrigerant

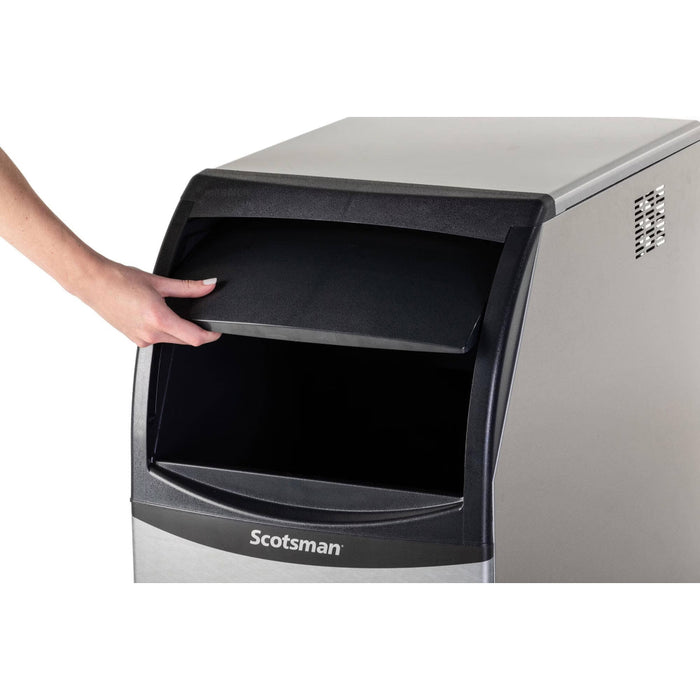

- Slide back door allows easy access to ice in the bin
- Front breathing vents allow for flexible placement
- Clear cube evaporator technology
- Intuitive control panel allows for quick and easy operation
- Ice scoop included
- Optional floor mount kit allows for installation under 34" ADA counter tops
- Ideal for kitchens, cafes, or bars with limited space
Description
The Scotsman CU0415MAX-1 15" Prodigy Undercounter Ice Machine is specifically engineered for establishments requiring high-quality large cube ice in a minimal footprint. This 15" wide unit features a compact design that fits into tight back-bar or undercounter spaces, producing up to 60 Lbs. of ice daily with a built-in 36 Lbs. storage bin. Its air-cooled system and front-breathing design allow for built-in installation without the need for side or rear clearance, maximizing floor plan flexibility.
Its design includes a slide-back door that provides easy access to the storage bin, ensuring ice is always within reach for service. It utilizes a unique evaporator to produce crystal clear cubes, requiring low energy consumption. An optional floor mount kit is available to allow for installation under 34" ADA compliant counter tops, providing flexibility for diverse establishment layouts.
The CU0415MAX-1 unit utilizes a unique evaporator to create crystal clear cubes that enhance the presentation of any beverage. The intuitive control panel and included ice scoop ensure easy operation for staff, while the R290 refrigerant provides an environmentally friendly cooling process. This unit is a dependable choice in a demanding work environment.
- Restaurant Size Recommendation: Suitable for small-scale establishments or as a supplemental ice source in larger venues; it provides sufficient volume for operations with low to medium ice demands.
- Maintenance Advice: Operators can utilize the unit-specific QR code for instant access to cleaning guides and service manuals. Scotsman also recommends installing water filtration to maintain ice quality and machine longevity.
- Manufacturer's Warranty: Scotsman provides a 3 year parts and labor warranty on all components for commercial installations within North, South, and Central America.
Specifications
| Specifications | |
|---|---|
| Model | CU0415MAX-1 |
| Width | 15 Inches |
| Depth | 24 Inches |
| Height | 38 Inches |
| 24 Hour Ice Yield | 60 Lbs. |
| Sotarage Capacity | 36 Lbs. |
| Ice Type | Large Cubes |
| Refrigerant | R290 |
| Voltage | 115 V |
| Hertz | 60 Hz |
| Phase | 1 Ph |
| Amperage | 15 Amps |
| Condenser Type | Air Cooled |
| Energy Consumption | 9.23 kWh per 100 Lbs. |
| Water Usage | 24.6 gal per 100 Lbs. |
| Installation Type | Undercounter |
| Material | Stainless Steel & Aluminum Alloy |
| Product Type | Ice Machine |
