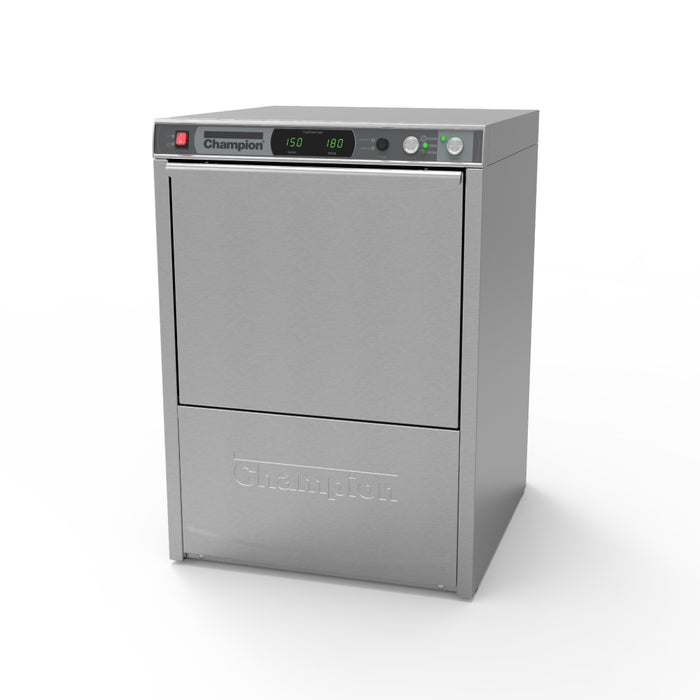

Champion UH330B High Temperature Undercounter Dishwasher with Built-In Booster Heater
Product Overview
- 24" undercounter dishwasher
- Stainless steel tank bottom for improved corrosion resistance
- StemSure Soft Start feature protects fragile wine glasses and china
- Heat Recovery technology uses a cold water feed
- 82°C (180°F) final rinse ensures full sanitization without extra chemical agents
- Digital LED display provides real-time temperature and cycle monitoring
- Interchangeable stainless steel wash and rinse arms simplify cleaning
- Automatic pumped drain allows for flexible installation under any counter
- Ideal for bistros, wine bars, or any othe commercial kitchen
Description
This Champion UH330B High Temperature Undercounter Dishwasher utilizes advanced Heat Recovery technology to operate with a cold water feed, reducing energy costs. The system removes condensation and ensures quicker drying of wares, while the Rinse Sentry feature maintains a consistent 82°C (180°F) final rinse for sanitization. A 1 HP corrosion-resistant pump and stainless steel tank provide long-term durability in demanding commercial environments.
The unit includes a Soft Start feature known as StemSure to protect fragile glassware from chipping or breaking during the initial wash cycle. Operators can easily monitor performance through the precise digital temperature display, while the advanced service diagnostics simplify routine troubleshooting. With a built-in pumped drain and automatic drain cycle, this machine offers flexible installation and streamlined daily operation.
Designed for efficiency, this model includes 3 distinct cycle time options to accommodate different soil levels. The independent stainless steel wash and rinse arms are interchangeable, ensuring thorough coverage and easy maintenance. This undercounter solution provides a high-performance cleaning result for businesses focusing on sustainability and lower operating expenses without sacrificing sanitation standards.
- Restaurant Size Recommendation: Ideal for small-to-medium cafes, bars, or bistros focusing on glassware protection.
- Maintenance Advice: Clean the stainless steel tank & interchangeable wash arms daily. Monitor the digital display for service diagnostics.
- Manufacturer's Warranty: Champion provides a 1 year parts and labor warranty.
Specifications
| Specifications | |
|---|---|
| Model | UH330B |
| Width | 24 Inches |
| Depth | 26.75 Inches - Closed 42.40 Inches - Opened |
| Height | 33.75 Inches |
| Capacity | Up to 24 Racks per Hour |
| Voltage | 208 - 240 V |
| Hertz | 60 Hz |
| Phase | 1 Ph 3 Ph |
| Amperage | 32 - 36 Amps 22 - 24 Amps |
| Horsepower | 1 HP |
| Booster Heater | 4.3 kW |
| Tank Heater | 2 kW |
| Wash Cycle Time | 70 Seconds 120 Seconds 197 Seconds |
| Water Consumption | 12.7 - 15.2 gal. per Hour |
| Water Temperature | 66°C - 82°C (150°F - 180°F) |
| Water Flow Pressure | 25 psi |
| Water Connection Size | 3/4 Inches |
| Installation Type | Undercounter |
| Material | Stainless Steel |
| Product Type | Undercounter Dishwasher |
