Canplas 3910A02 10 GPM Compact Grease Interceptor - 20 lb. Capacity Min., 2" Connection
- 10 GPM flow rate
- Heavy-duty engineered thermoplastic
- Grease separation efficiency
- 20 lb grease capacity
Preventing excessive grease accumulation and serious blockages in your plumbing is simple with the Canplas Endura 10 GPM Compact Grease Interceptor.
Grease interceptors have become the industry standard in grease management and are designed to separate non-petroleum fats, oils, and grease from wastewater.
Appearance and Composition
Canplas Endura tanks are constructed from molds in order to eliminate any seams that could potentially cause leakage. The eco-friendly, engineered thermoplastic material is durable and ensures tanks won’t corrode, chip, or peel even under harsh conditions.

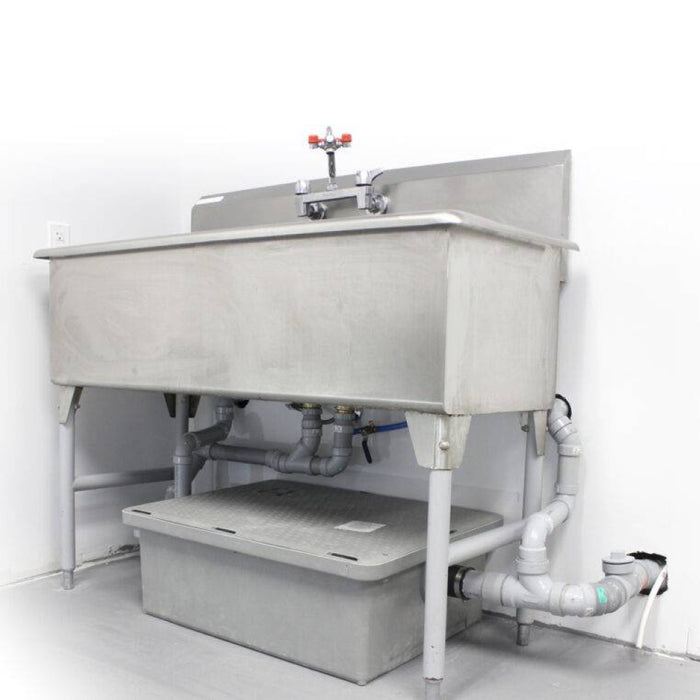

This compact model (16.3” H x 14.5” W x 17.4” D ) takes up less space and can be installed right on top of the floor, in-floor, or slightly recessed. The tank’s cover can support an impressive 440 lb (220 kg) of pedestrian or light traffic, and its EZ-Open feature makes it easy to clean when necessary. A small 2” connection as well as an air tight silicone seal prevent odours from leaving the interceptor.
Flow Rate and Capacity
This Endura grease interceptor is able to operate at 220˚F (104˚C) and has a flow rate of 10 gallons per minute (GPM) with a minimum grease capacity of 20 lb. The Canplas patented baffle system ensures top separation performance at a low flow rate.
|Unit Weight (Empty)||15.8 lb|
|Flow Rate||10 GPM|
|Grease Capacity Min||20 lb|
|Grease Capacity Actual||38.07 lb|
|Surface Load Capacity||440 lb|
|Connection Size||2 inches|
|Liquid Capacity||12.96 gal|
|Maximum Temperature||220°F / 104°C|
