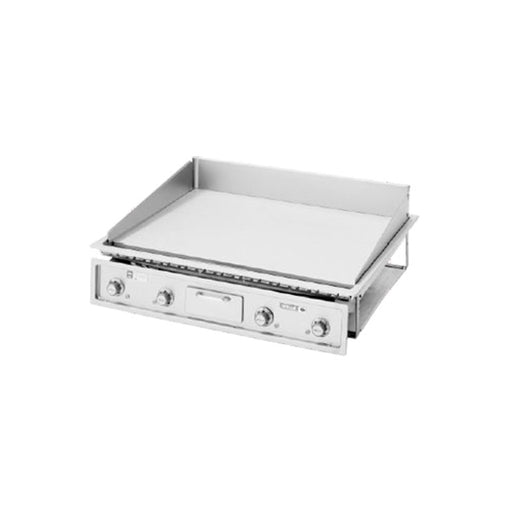

Wells G-23 36" Electric Griddle - 208-240V / 1-3 Ph / 16 kW

Contact Us for Pricing? Please fill out the form below to receive a personalized quote.
* Email:
Shipping Address:

Need Help?
Contact one of our experts.

Product Overview

Wells G-Series Electric Counter Top Griddles are ideal for any commercial kitchen based on their versatile, easy-to-use design. They feature one-half inch thick griddle plates for quick pre-heat, even heat distribution and fast recovery. Positive-off thermostats allow for individual zone temperature control and provide precise operator-controlled temperatures from 200° to 450° F (93° to 232° C). Enclosed tubular elements are clamped onto the bottom of the griddle plate for even heat distribution over the entire surface.

Additional specifications include removable splash guards for easy clean-up, extra-large 4-quart capacity, easily removable, front grease drawer, protective guard rings to protect the controls from accidents or accidental temperature changes and 4” adjustable legs.

  • Each individual thermostat controls an eight and one half-inch wide cooking surface.
  • Enclosed tubular elements are clamped onto the griddle plate to provide even heat distribution over the entire surface.
  • Removable splashguard makes clean up easier. • The removable front grease drawer has a four-quart capacity.
  • Controls are mounted with a protective guard ring to help prevent accidental temperature changes.
  • Each unit is provided with 4” adjustable legs.
  • A terminal block is provided for field connection to the main power supply.
  • The G-23 Griddle is Underwriters Laboratories, Inc. LISTED and meets NSF International and Canadian standards.
  • A one-year warranty against defects covers parts and labor.
Model G23
Width 36.5 inches
Depth 29.6 inches
Height 16 inches
Amps 35-76.9 Amps
Voltage 208/240V
Phase 1 or 3 Phase
Wattage 16 kW
Power Type Electric
Number of Elements 4
Max Temperature 450°F / 232°C
Type Griddle
  • Made in America This product was made in United States of America.
  • NSF Certified This item meets NSF's standards that focuses on public health protection, ensuring the item is designed and constructed in a way that promotes food safety.
  • CE Certified This item has been assessed and meets health, safety, and environmental requirements set by CE.
  • CSA Certified This item has been certified by the Canadian Standards Association.
