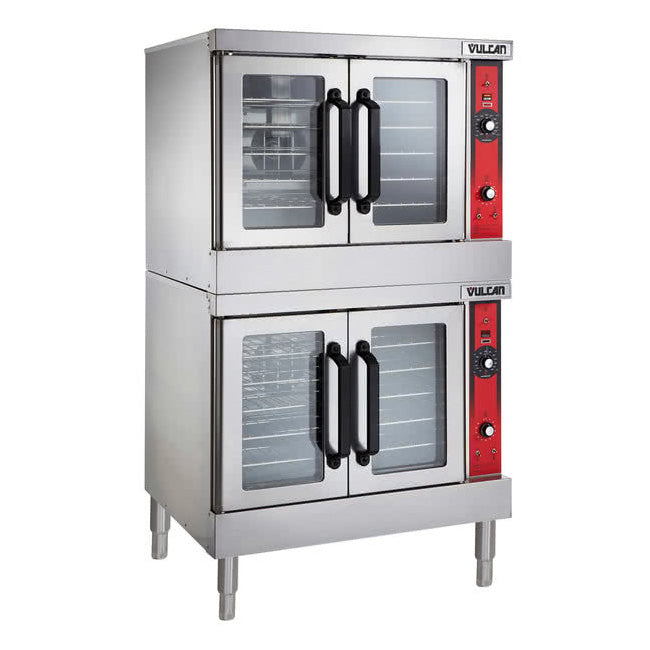

Vulcan VC66GD 40" Stainless Steel Double Deck Deep Depth Gas Convection Oven - 100,000BTU
Product Overview
Double section, deep depth gas convection oven, Vulcan- Hart Model No. (VC66GD) (VC66GC). Stainless steel front, sides, top and legs. Independently operated stainless steel doors with double pane windows. Non-sag insulation applied to the top, rear, sides, bottom and doors. Porcelain enamel on steel oven interiors measures 29"w x 261⁄8"d x 20"h. Two interior oven lights per section. Five nickel plated oven racks per section measure 281⁄4" x 241⁄2". Eleven position nickel plated rack guides with positive rack stops. One 50,000 BTU/hr. burner per section. 100,000 BTU/hr. total input. Electronic spark igniters. Furnished with a two speed 1⁄2 H.P. oven blower-motor per section. Oven cool switch for rapid cool down. 120 volt, 60 Hz, 1 ph power supply required. 6' cord and plug. 8 amps total draw per section.
- Stainless steel front, sides, top and legs.
- Independently operated stainless steel doors with double pane windows.
- 50,000 BTU/hr. burner per section. 100,000 BTU/hr. total input.
- Electronic spark igniters.
- 1⁄2 H.P. two speed oven blower-motor. 120/60/1 with 6' cord and plug. 8 amps per section. 16 amps total draw.
- Oven cool switch for rapid cool down.
- Porcelain enamel on steel oven interiors.
- Five nickel plated oven racks with eleven rack positions per section.
- 3⁄4" rear gas connection with combination gas pressure regulator and safety solenoid system.
| Specifications | |
|---|---|
| Model | VC66GD |
| Length | 40.25 Inches |
| Width | 45.12 Inches |
| Height | 70 Inches |
| Energy Type | Natural Gas |
| Cook Time | 60 minutes |
| Temperature Range | 150 - 500°F / 66 - 260°C |
| Total BTU | 100,000 BTU/hour |
| Weight | 866 pounds |
| Product Type | Convection Oven |
