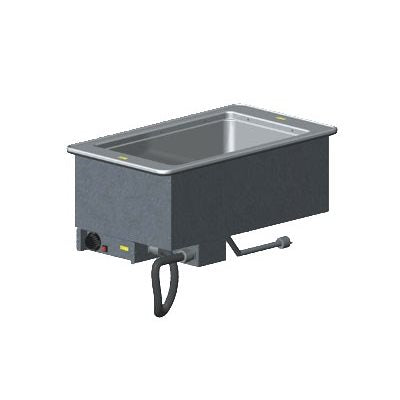

Vollrath 3646681 15" 1-Pan Drop-In Electric Hot Well - 120V/1000W
Sale
Current price
$3,077.45
$3,077.45
-
$3,077.45
Current price
$3,077.45
Original price
$3,333.90
Original price
$3,333.90
-
Original price
$3,333.90
Original price
$3,333.90
Need Help?
Contact one of our experts.
Product Overview
- Top is 18-gauge stainless steel
- Breaker gasket included for installation under drip-edge
- Flat work surface around opening
- Deep drawn well is 20-gauge stainless steel
- Power indicator light
- Standard drain is ½” (1.3 cm) stainless steel fitting welded to pan with ball valve shutoff below exterior housing
- Manifold drain option is 1” (2.5 cm) copper tubing and retains individual well shut-off and adds manifold shutoff.
- Manifold drain includes auto-fill. Eliminates the need to monitor wells and add water, reducing operating and labor costs. Attaches easily to manifold drains assembly using simple tools. The check valve/siphon prevents cross contamination of drain and potable water lines. Requires separate electrical service.
- Unit insulated on sides, and below element assembly with high-density glass fiber insulation.
- Exterior housing is 20-gauge galvanized steel
- 6 ft (182.2 cm) cord with plug
- Stainless control panel has 3 ft (91.4 cm) teethered flexible rubber cord. Shipped connected to drop-in, but may also be remotely mounted.
- Positioning clips provided to center drop-in within cutout
- Standard mounting clips adjustable for up to 3” (7.6 cm) thick counters
- One-year parts and labor warranty
| Specifications | |
|---|---|
| Model | 3646681 |
| Width | 15 Inches |
| Depth | 26 Inches |
| Height | 15 Inches |
| Voltage | 120 Volts |
| Wattage Per Well | 1000 Watts |
| Amp | 8.3 Amps |
| Number of Pan | 1 Pan |
| Control Type | Thermostatic |
| Installation Type | Drop-In |
| Product Type | Hot Well |
