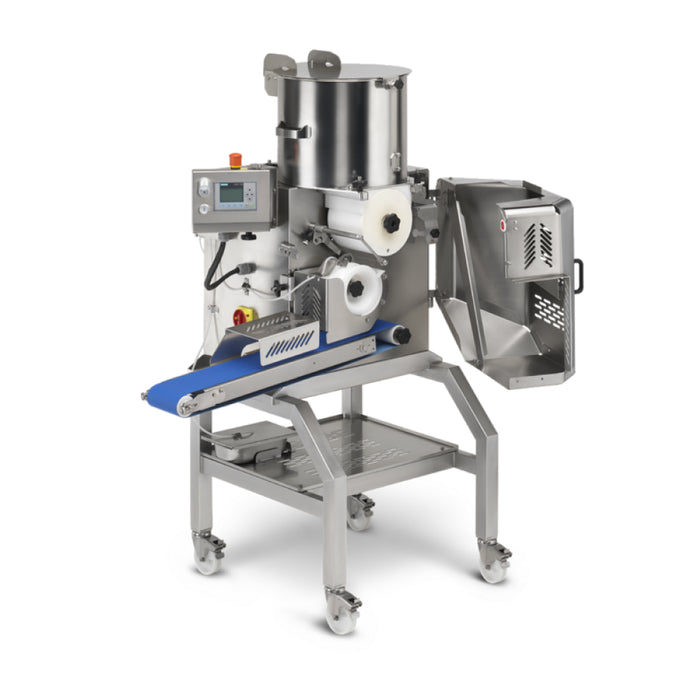

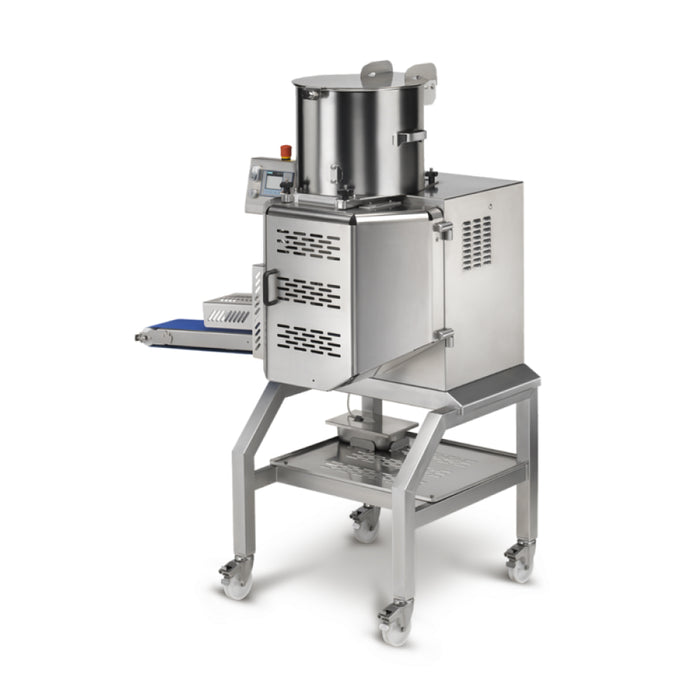

La minerva C/E HF Automatic Patty & Meatball Forming Machine
Product Overview
- High productivity with approx. 3000 patties/hr. (single shape) & 6000 meatballs/hr. (Double shape)
- Constructed from durable stainless steel and Delrin® components
- Patties with a max. diameter of 135 mm and thickness of 30 mm & meatballs from 25 to 39 mm

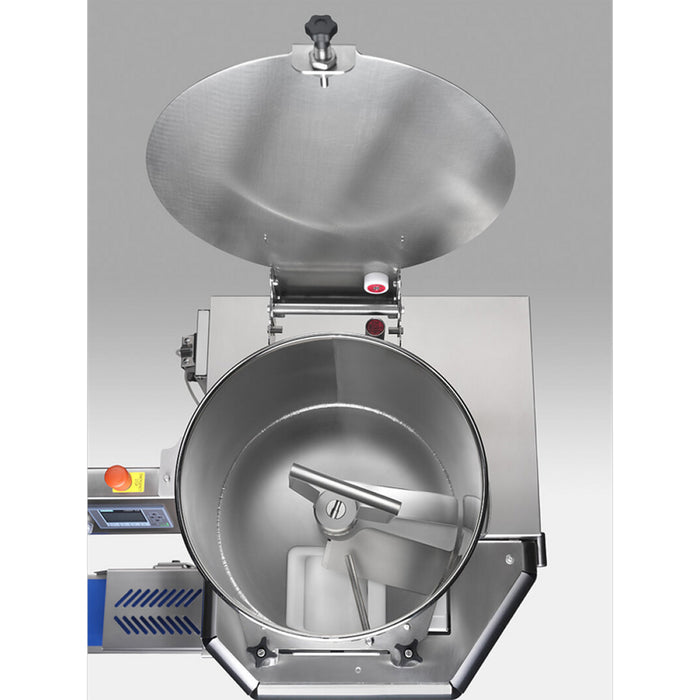

- Features a 40 L completely removable bowl for easy cleaning and an automatic scraper device
- Adjustable patty thickness setting and a paper interleaver device for stacking patties
- Machine on trolley with self-breaking wheels
- Perfect for large batch preparation of signature burgers for refrigerated display
Description
The La Minerva C/E HF stands as a premier solution for high-capacity food processing, capable of producing 2100 patties or 4200 meatballs every hour. This automated system ensures every portion meets exact weight and shape standards, reducing waste and maintaining consistency across large orders. Constructed with food-grade stainless steel and Delrin®, the machine features a 41 L. tank that is entirely removable to facilitate deep cleaning and meet strict sanitary codes.
Integrated stacking function that piles patties up to 80 mm high for immediate storage. A specialized automatic scraper works continuously to keep the forming cylinder free of debris. For added mobility, the unit is mounted on a trolley with self-breaking wheels, allowing staff to move the equipment safely across the kitchen floor.
Versatility defines the C/E HF, offering adjustable patty thickness up to 30 mm and diameters up to 135 mm to suit various menu items. The built-in interleaver device automates the placement of parchment paper between each patty, preventing sticking and improving the speed of service. This machine is a critical asset for any commercial operation that demands professional-grade results and rapid output without compromising product texture.
Restaurant Size Recommendations
Well-suited for mid-to-high volume commercial kitchens, butcher shops, or food preparation facilities that require consistent production of patties and meatballs.
Maintenance Advice
Ensure the removable Delrin® product conveyor and the 40L bowl are thoroughly cleaned after each use. Periodically check and clean the automatic scraper device, and ensure the compressed air pneumatic system is functioning correctly to prevent buildup.
Specifications
| Specifications | |
|---|---|
| Model | C/E HF |
| Width | 600 mm |
| Depth | 570 mm |
| Height | 750 mm |
| Patty Dimensions | Ø 135 x 30 mm |
| Max Meatball Diameter | Up to 39 mm |
| Capacity | Patties - Up to 3000 pcs/h (single shape) Meatballs - 6000 pcs/h (double shape) |
| Tank capacity | 40 L |
| Voltage | 230 V |
| Hertz | 50 Hz |
| Phase | 1 Ph |
| Wattage | 0.9 kW |
| Air Pressure Requirement | Min 4 bar compressed air |
| Material | Stainless steel and Delrin |
| Product Type | Patty Maker |
