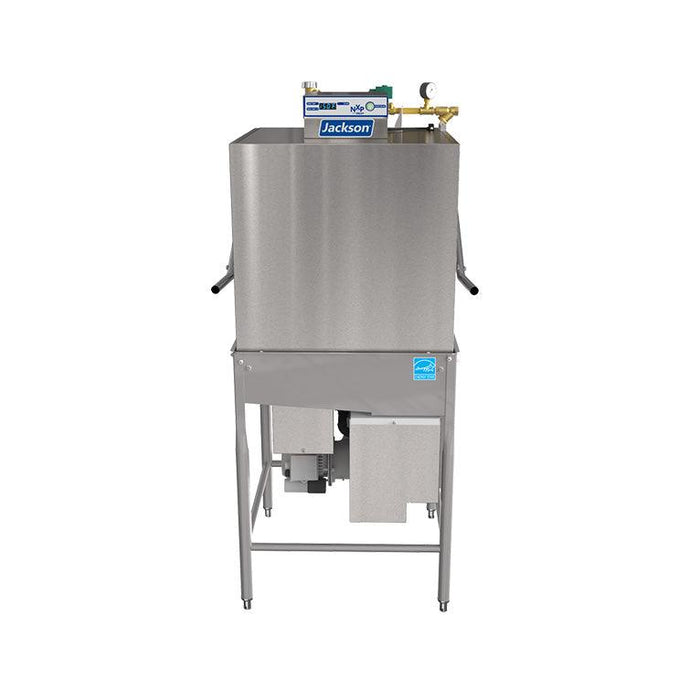

Jackson High-Temp Door-Type Dishwasher with Built-in Booster - 208V, 1ph - NXP-HTD

Meet the NXP-HTD. It’s a powerful, single-cycle high temperature sanitizing door-type that provides Clean the First Time® results! The NXP-HTD features automatic tank fill, door-actuated start, a built-in booster heater with Sani-Sure™ final rinse system, digital temperature display, delime cycle, interchangeable upper and lower wash/rinse arms, vent fan control, and a generous 17.25″ vertical chamber clearance.

Designed to clean 63 racks of dishes per hour, the Jackson NXP-HTD warewashing system has a 57-second single automatic cycle. Its pull-down door starts the washing cycle and a digital temperature display located on top of the unit provides ongoing information to the operator, ensuring functional operation. Stainless steel nozzles deeply clean the dishware; the upper and lower wash and rise arms are interchangeable to maintain effective cleaning functions. After general cleaning, the 20-inch-wide by 20-inch-deep racks are finally washed with a Sani-Sure™ final rinse system.

The Jackson NXP-HTD commercial warewashing system's 17.25" vertical chamber clearance helps prevent dish jamming, reducing breakage. A large scrap basket located on the bottom of the unit collects leftover food, particles, and can be removed for emptying and cleaning. The tank automatically fills; its rise booster heater is built in and operates at 70 degrees Fahrenheit. When the unit becomes idle, its vent fan will shut off to conserve energy. If temperatures become too hot during operation, the unit alerts the operator and turns off; it also notifies the operator when water levels are too low. Overall, the unit is 30 5⁄8" wide, 29" deep, and 64" high.

Features:

• Electric tank heat

• Cleans 63 (58)* racks per hour using only 0.89 gallons of water per rack
• Built-in booster heater with Sani-Sure™ final rinse system ensures
  proper sanitization is achieved every cycle
• Single 57-second automatic cycle
• Automatic tank fill
• Door-actuated start
• Digital temperature display
• Delime cycle
• 17.25″ vertical chamber clearance
• Interchangeable upper and lower wash/rinse arms
• 1 hp stainless steel wash pump motor
• Vent fan control shuts the vent fan off when machine is idle,
  saving energy
• Top mounted controls for ease of operation
• Large scrap basket
• Single point connections for all utilities
• Field convertible from straight-through to corner and
  vice versa (kit required)
• Field phase conversion capable (kit required)
• Low watt density electric wash tank heater
• Hi-limit thermostat and low water protection
• Detergent/rinse additive signal connection fuse box
• Adjustable bullet feet
• Uses standard 20″ x 20″ (508 mm x 508 mm) racks
