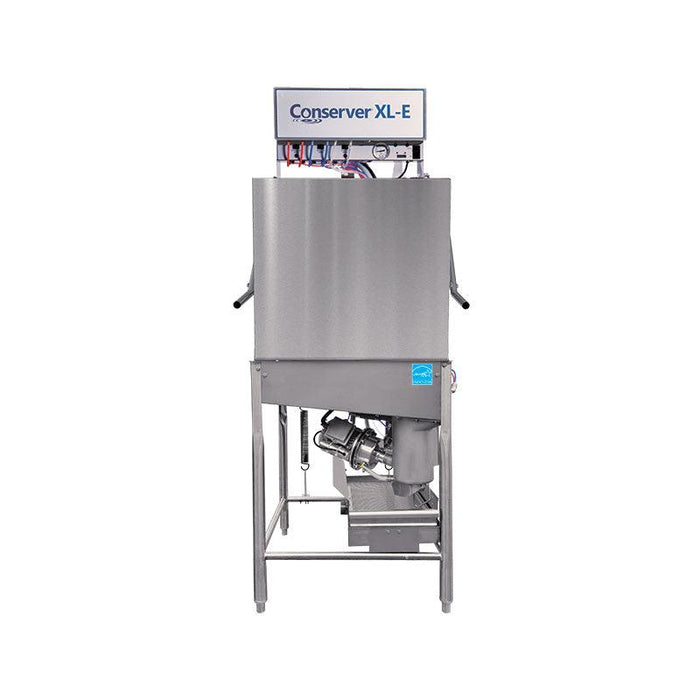

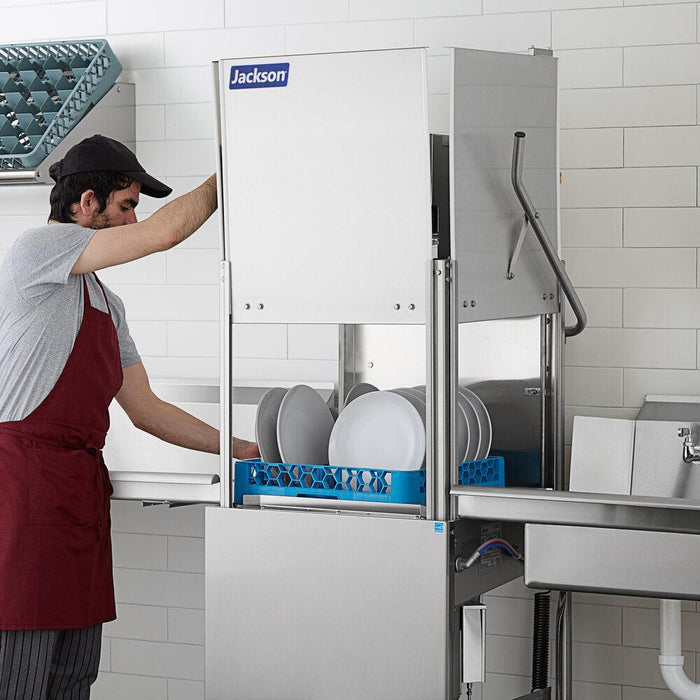

Jackson Conserver XL-E Low Temp Door Type Dishwasher - 115v, 1 Phase
Product Overview
- ENERGY STAR® rated chemical sanitizing, single rack door-type dishmachine
- Cleans 39 racks per hour, using 1.02 gallons of water per rack
- Door safety switch prevents washer from being opened during a wash cycle
- Built-in stainless steel scrap accumulator
- 17 ¼” (438 mm) vertical inside clearance
- Cleans one glass rack at a time
- Top-mount electromechanical controls
- Three internal pumps for detergent, rinse agent, and sanitizer
- Self-draining stainless steel pump eliminates soil and detergent carryover between cycles
- Inlet, wash, and rinse operating temperature range: 120-140 degrees F
- Adjustable bullet feet
Description
The Jackson Conserve XL-E is an excellent low temperature dishwasher for your restaurant. This unit can clean 39 racks of dishes per hour to keep up with your busiest hours! It only uses 1.02 gallons of water per rack, making it a money-saver and environmentally friendly. The auto-start feature begins the cleaning cycle automatically in order to speed up your wash times. The built-in delimer function is easy to use and will keep your machine clear of hard water deposits. A removable scrap screen, built-in waste accumulator, and internal sump keep your machine working hard throughout the day. All of your chemical pumps for wash, rinse, and sanitizer are built-in to this unit, and a low-level indicator will alert you when it is time to replace your chemicals. This machine is field convertible, so it can be easily switched from a straight to a corner configuration.
To streamline installation, the Conserver XL-E low-temperature dishwasher has adjustable feet, a single-point electrical connection, and a dual-point drain connection. It is also convertible from a straight-through to a corner setup and vice versa. A door safety switch prevents opening while a cycle is running, and the wash arms are interchangeable for convenience. The delimer switch runs a cycle that removes hard water deposits.
The Jackson Conserver XL-E dish washer is field-convertible so you can switch your unit to best fit your needs. To do this, you will need a false panel (sold separately)
Specifications
| Specifications | |
|---|---|
| Model | Conserver XL-E |
| Width | 33.13 Inches |
| Depth | 29.5 Inches |
| Height | 68.5 Inches |
| Voltage | 115 V |
| Hertz | 60 Hz |
| Phase | 1 |
| Amps | 11.4 Amps |
| Horsepower | 1 Hp |
| Racks per Hour | 39 |
| Water Usage | 1.02 gal per rack |
| High or Low Temp | Low Temp |
| Dishwasher Style | Straight / Corner |
| Features | Chemical Pumps |
| Interior Clearance | 18.5 Inches |
| Minimum Water Inlet Temperature | 120 Degrees F (140 Recommended) |
| Wash Cycle Time | 90 Seconds |
| Water Inlet Temperature | 120 - 140 Degrees F |
| Water Inlet Size | 0.5 Inches |
- Energy Star Partner This item meets strict energy performance standards set by EPA. Highly energy efficient making it less expensive to operate.
- ETL Certified Determined through independent testing and periodic follow-up inspections by NRTL. This item meets North American product safety standards and published industry standards.
- Bare Wire This product comes bare wire and must be hardwired. There is no standard plug.
- Made in America This product was made in United States of America.
- NSF Certified This item meets NSF's standards that focuses on public health protection, ensuring the item is designed and constructed in a way that promotes food safety.
