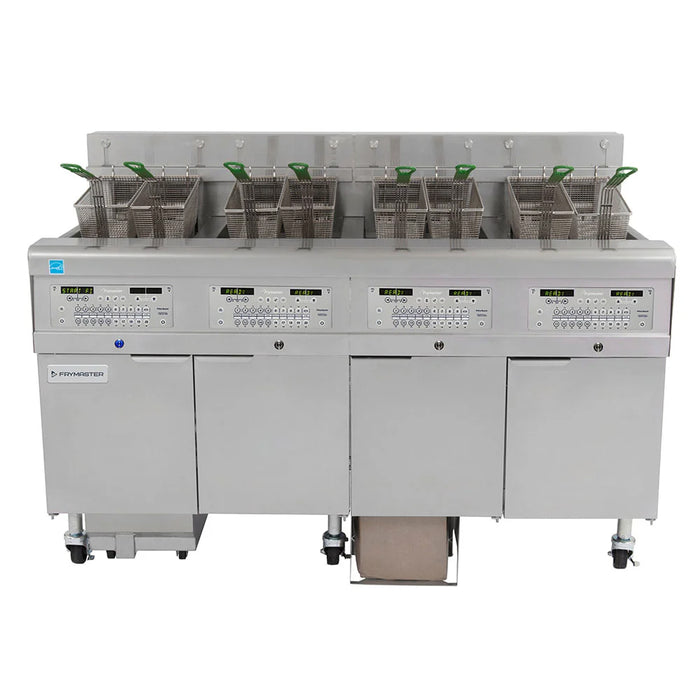

Frymaster 4FQG30U FilterQuick 30 Lbs. Natural Gas Fryer with Auto Filtration - 70,000 BTU
Product Overview
- 62.7" x 32.6" freestanding fryer
- 4 frypots with 30 lbs. capacity each
- 70,000 BTU/hr. gas power
- Stainless steel frypot, door, and cabinet sides
- FQ4000 easyTouch controller simplifies operations
- Programmable recipes and oil quality monitoring
- Automatic filtration with rear oil flush and Auto Top Off maintains oil levels
- Eco Mode reduces idle energy consumption
- Includes adjustable casters for easy mobility
Description
The Frymaster 4FQG30U FilterQuick 30 is a high-performance gas fryer built for high-volume commercial kitchens. Designed to maximize efficiency without sacrificing output, each frypot holds 30 lbs. of oil while delivering 70,000 BTU/hr of cooking power through infrared burners. The system features independent frypot construction for seamless maintenance, along with durable stainless steel frypots, doors, and cabinet sides.
Equipped with the intuitive FQ4000 easyTouch controller, the unit streamlines operation with programmable menu recipes and oil quality tracking. It automates daily oil management through built-in automatic filtration with a rear oil flush and an Auto Top Off (ATO) system that continuously refills oil from an internal Jug-in-Box (JIB), keeping food quality consistent and extending oil life.
Compared to standard 50-lb fryers, the FilterQuick 30 significantly reduces oil and energy consumption, further enhanced by an idle Eco Mode during slow periods. It operates on a 1" NPT gas connection (natural gas or propane), uses standard 120V electrical power for controls and filtration, and comes with adjustable casters for flexible kitchen layout and easy cleaning.
Restaurant Size Recommendations
Suited for high-volume commercial kitchens, large restaurants, and banquet facilities. Its ability to handle multiple frying tasks simultaneously makes it ideal for operations with consistent demand for fried foods, such as busy quick-service establishments or catering kitchens.
Maintenance Advice
Regularly utilize the automatic filtration system. Clean the stainless steel frypot, door, and cabinet sides daily to prevent grease buildup. Periodically check and clean the deep cold zone to ensure efficient operation.
Specifications
| Specifications | |
|---|---|
| Model | 4FQG30U |
| Width | 62.70 Inches |
| Depth | 32.60 Inches |
| Height | 46.50 Inches |
| Oil Capacity per Frypot | 30 Lbs. |
| BTU per Hour (Per Frypot) | 70,000 BTU/Hr. |
| Frying Area per Frypot | 13 x 14 x 3.75 Inches |
| Pot Type | Open Pot |
| Number of Pots | 4 |
| Voltage | 120 V |
| Gas Inlet Size | 1" NPT |
| Incoming Gas Pressure | 6"-14" W.C. |
| Control Type | FQ4000 easyTouch® |
| Fuel Type | Natural Gas |
| Installation Type | Freestanding |
| Material | Stainless Steel |
| Product Type | Fryer |
