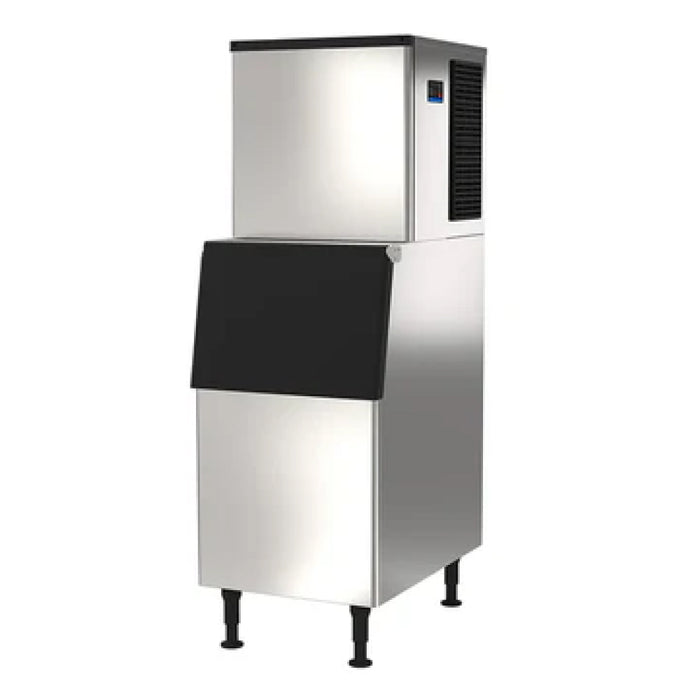

Econocold 31" Air Cooled Half-Dice Cube Ice Machine - 375 Lbs. - IM-530AA-H-HC
Product Overview
- 31" Ice machine produces 530 Lbs. of ice every 24 hours
- Stainless steel exterior provides excellent rust resistance
- 375 Lbs. storage bin capacity
- Includes a 3M water filter
- Power switch accessible without panel removal
- Removable air filter for easy cleaning
- Adjustable leveling legs for stable installation
- Requires use of a drain
- Ideal for large-sized restaurants and busy cocktail bars
Description
The Econocold IM-530AA-H-HC is engineered for commercial environments that require a high-volume supply of ice. This unit produces up to 530 Lbs. of crystal-clear half-dice ice every 24 hours, making it a reliable asset. Its compact 31" width is specifically designed to maximize ice production without occupying excessive floor space, allowing for seamless integration into busy kitchen lines or bar areas.
Built with a professional 304 stainless steel exterior, designed to withstand rigors of a humid commercial kitchen while maintaining a clean appearance. The air-cooled condenser is engineered for energy efficiency and features a front-facing, removable air filter that simplifies the cleaning process. An intuitive digital control panel allows operators to monitor the production stage.
For a complete storage solution, this head unit is paired with a matching 375 Lbs. capacity storage bin that features high-density polyurethane insulation to minimize meltage. The bin is equipped with 6" adjustable leveling legs to ensure stability. This combination of high-output production and high-capacity storage ensures your staff never runs low on ice.
Product specifications or design are subject to change without notice.
- Restaurant Size Recommendation: For establishments with 100 to 150 seats, or bars serving approximately 250 to 300 drinks per day.
- Maintenance Advice: Clean the removable air filter every 30 days to prevent the condenser from overheating. Perform a full system descale and sanitation cycle every 6 months using nickel-safe cleaner to maintain the evaporator plate.
Specifications
| Specifications | |
|---|---|
| Model | IM-530AA-H-HC |
| Width | 31 Inches |
| Depth | 33 Inches |
| Height | 67.50 Inches |
| Ice Dimensions | Half Cube (0.37 x 0.87 x 0.87 Inches) |
| Production Capacity | 530 Lbs. per Day |
| Bin Storage Capacity | 375 Lbs. |
| Number of Legs | 4 |
| Voltage | 220 V |
| Hertz | 60 Hz |
| Phase | 1 Ph |
| Wattage | 704 W |
| Amperage | 7.5 Amps |
| Refrigerant Type | R-404a |
| Condenser Type | Air Cooled |
| Ice Type | Half-Diced Cube |
| Installation Type | Free-standing |
| Material | Stainless Steel & Polyethylene |
| Product Type | Ice Machine |
