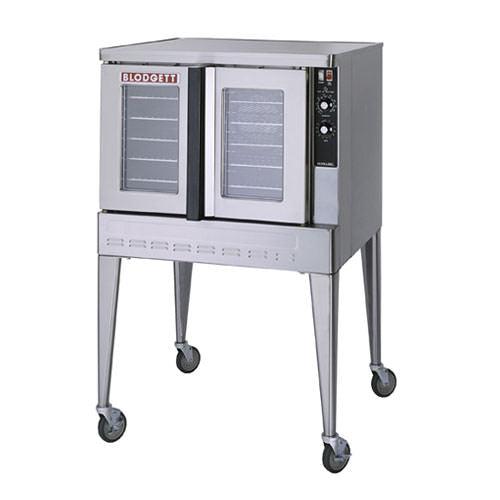

Blodgett ZEPH-200-ES-G SGL Single Deck Full Size Natural Gas Convection Oven
Product Overview
- Stainless steel front, top and sides
- Dual pane thermal glass windows encased in stainless steel door frames
- Powder-coated door handle with simultaneous door operation
- Triple-mounted pressure lock door design with turnbuckle assembly
- Ball bearing slide out front control panel for easy servicing
- 1" solid block plus 1" mineral fiber insulation for a total of 2" of insulation
- Full angle-iron frame
- Double-sided porcelainized baking compartment liner
- Stainless steel combustion chamber
- Single inlet blower wheel
- Five chrome-plated racks, eleven rack positions with a minimum of 1-5/8" spacing
- Direct Fired gas system
- Electronic spark ignition control system
- Removable inshot burners
- Internal pressure regulator
- Manual gas service cut-off switch located on the front of the control panel
- Solid state thermostat with temperature control range of 200F to 500F
- Two speed fan motor
Description
Exterior Construction – Full angle iron frame Stainless steel front, top, sides and legs. Dual pane thermal glass windows encased in stainless steel door frames. Powder coated door handle with simultaneous door operation. Triple-mounted pressure lock door design with turnbuckle assembly. Removable front control panel. Solid mineral fiber insulation at top, back, sides and bottom.
Interior Construction – Double-sided porcelainized baking compartment liner (14 gauge). Aluminized steel combustion chamber Dual inlet blower wheel. Five chrome-plated racks, eleven rack positions with a minimum of 1-5/8” (41mm) spacing. Operation – Dual flow gas system combines direct and indirect heat. Electronic spark ignition control system.
Removable dual tube burners. Pressure regulator and manual gas service cut-off valve located in front control area. Air mixers with adjustable air shutters. Solid state thermostat with temperature control range of 200°F (93°C) to 500°F (260°C). Two speed fan motor 1/2 horsepower blower motor with automatic thermal overload protection. Control area cooling fan. Interior oven lights. Standard Features – SSI-D – solid state infinite control w/digital timer 25” (635mm) adjustable stainless steel legs (for single units) 6” (152mm) adjustable stainless steel legs (for double sections). Draft diverter or draft hood for venting (select one). Porcelainized oven liner.
Specifications
| Specifications | |
|---|---|
| Model | ZEPH-200-ES-G SGL |
| Length | 38.25 inches |
| Width | 36.87 inches |
| Height | 57 inches |
| Number of Decks | 1 |
| Number of Doors | 2 |
| Number of Racks | 5 |
| Voltage | 120 Volts |
| Amperage | 6 Amp |
| Gas Inlet Size | 3/4 Inches |
| Total BTU | 60,000 BTU/Hr |
| Power Type | Natural Gas |
