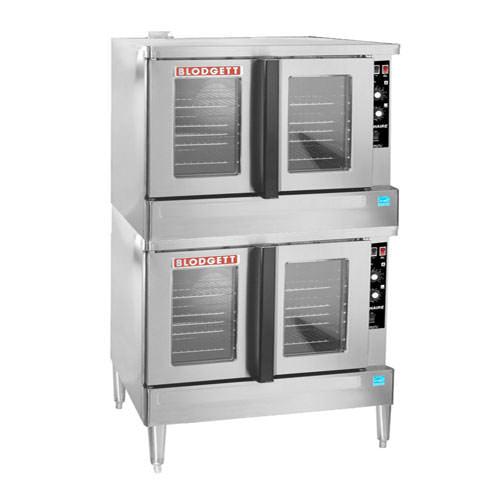

Blodgett ZEPH-100-E-DBL Double Standard Full Size Electric Convection Oven
Product Overview
- Exterior Construction - Full angle-iron frame
- Stainless steel front, top and sides
- Dual pane thermal glass window encased in stainless steel door frames
- Powder coated door handle with simultaneous door operation
- Triple-mounted pressure lock door design with turnbuckle assembly
- Removable front control panel
- Solid mineral fiber insulation at top, back, sides and bottom
- Interior Construction-Double-sided porcelainized baking compartment liner
- Aluminized blower wheel
- Five chrome-plated racks, eleven rack positions with a minimum of 1-5/8" spacing
- Operation-Three tubular heaters
- Two speed fan motor n 1/2 horsepower blower motor with automatic thermal overload protection
- Control area cooling fan
Description
Full angle-iron frame Stainless steel front, top, and sides Dual pane thermal glass windows encased in stainless steel door frames Powder coated door handle with simultaneous door operation Triple-mounted pressure lock door design with turnbuckle assembly Removable front control panel Solid mineral fiber insulation at top, back, sides and bottom
Double-sided porcelainized baking compartment liner (14 gauge) Aluminized blower wheel Five chrome-plated racks, eleven rack positions with a minimum of 1-5/8” (41mm) spacing
Three tubular heaters Solid state thermostat with temperature control range of 200°F (93°C) to 500°F (260°C) Two speed fan motor 1/2 horsepower blower motor with automatic thermal overload protection Control area cooling fan Two interior oven lamps
Specifications
| Specifications | |
|---|---|
| Model | ZEPH-100-E-DBL |
| Width | 38-1/4 inches |
| Depth | 36-7/8 inches |
| Height | 57 inches |
| Weight | 890 Lbs |
| Number of Decks | 2 |
| Number of Doors | 4 |
| Number of Racks | 10 |
| Voltage | 208 Volts |
| Amperage | 51 Amps |
| Wattage | 11 kW |
| Hertz | 60 Hertz |
| Phase | 1 Phase |
| Connection | Hard Wire |
