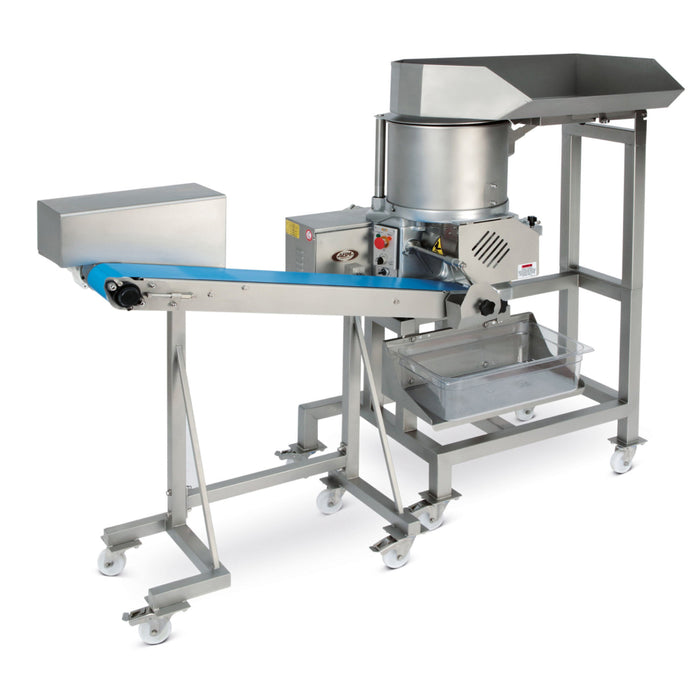

ABM HD4000 Plus Patty Former Machine
Product Overview
- Stainless steel construction
- Variable productivity up to 4000 patties / Hr.
- Pneumatic wire cleaner
- Conveyor belt 1127 mm
- 30L hopper capacity
- Support table with wheels
- Includes a stainless steel paddle
- No specific dismantling tools
- Drum not included
Description
The ABM HD4000 Plus Patty Former Machine is an industrial-grade solution built for maximum output in large-scale food manufacturing and commercial commissaries. It delivers high-efficiency production with an adjustable output that reaches up to 4,000 patties / Hr. Designed for extended production cycles, the machine comes standard with a 30L hopper, creating a system capable of managing large volumes of raw product with minimal interruption for reloading.

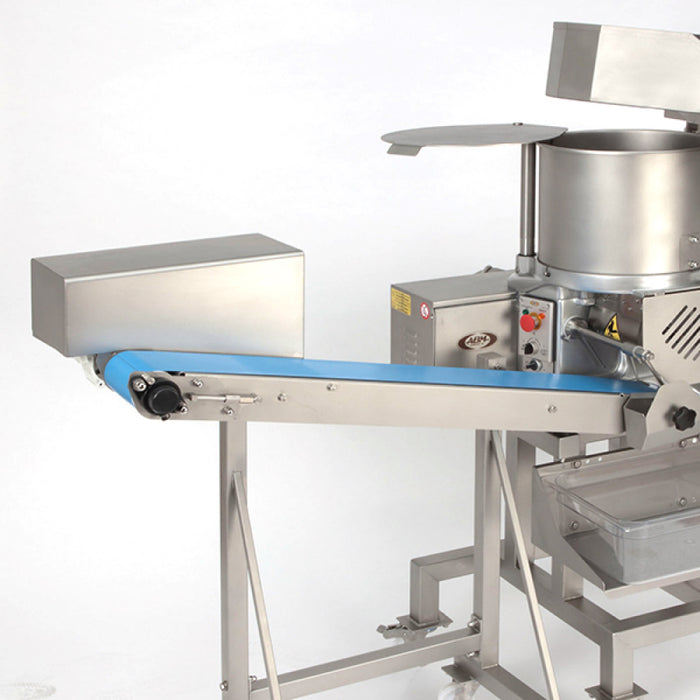

Product consistency and portion control are managed through variable speed operation and precision tooling. The machine is designed lower to facilitate easier and faster loading of raw product into the hopper by staff. The maximum circular patty diameter obtainable is 5.12", with the product thickness adjustable up to 1.26" (32mm). A standard 1,127 mm conveyor belt efficiently moves the formed product to the next stage of the production line.
Operational longevity and stringent hygiene compliance are integrated into the HD4000 Plus's standard features. The machine includes a stainless steel paddle for superior sanitation and a pneumatic wire cleaner to automatically maintain the forming area. Furthermore, the design allows for the main components to be dismantled without requiring any specific tools, accelerating the required tool-free cleaning process between batches. The machine also includes a foot switch for hands-free control and a support table with wheels for simple floor placement.
Specifications
| Specifications | |
|---|---|
| Model | F2000SD |
| Width | 28.75 Inches |
| Depth | 72.70 Inches |
| Height | 59.33 Inches |
| Paper Dimensions | 5.30 x 5.30 Inches |
| Conveyor Belt size | 1127 mm |
| Patty Diameter | 5.10" Single Shape 2.15" Double Shape |
| Number of Patties | 4,000 patties / Hr. |
| Hopper Capacity | 30 L |
| Wattage | 0,75 Kw |
| Installation Type | Floor |
| Material | Stainless Steel |
| Product Type | Patty Maker |
