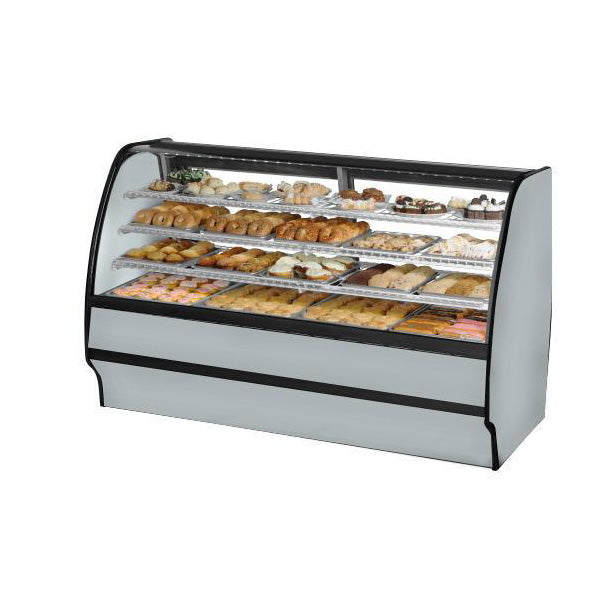

True TGM-R-77-SM/SM-S-S 77" Stainless Steel Refrigerated Merchandising Display Case with Side Mirrors

This product is discontinued.

Need Help?
Contact one of our experts.

Product Overview

This True TGM-R-77-SM/SM-S-S 77" Stainless Steel Refrigerated Merchandising Display Case with Side Mirrors combines efficient, high volume merchandising and exceptional refrigeration with an elegant curved glass front for sophisticated presentation of high end deli, desserts and pastries.

The refrigerated display is factory engineered, self-contained, capillary tube system using environmentally friendly R290 hydrocarbon refrigerant that has zero (0) ozone depletion potential (ODP), & three (3) global warming potential (GWP).

It features a high capacity, factory balanced refrigeration system that has two (2) temperature range options. Standard temperature range maintains cabinet temperatures of 33°F to 41°F (.5°C to 5°C), ideally suited for refrigerated bakery and cold deli products.

Features:

  • Exterior - powder coated FDA black rounded front and back, solid wood sides with aluminum cover and front panels. Color options available (upcharge may apply) - white or stainless.
  • Curved glass front and side glass panels. Interior - powder coated FDA white over CRS material. Color options available (upcharge may apply) - black or stainless.
  • Insulation - entire cabinet structure is foamed-in-place using a high density, polyurethane insulation that has zero ozone depletion potential (ODP) and zero global warming potential (GWP).
  • Curved glass front is single pane tempered glass with extra large viewing area to maximize product presentation.
  • Two (2) rear sliding glass doors for back access.
  • Each door fitted with 12" (305 mm) long aluminum handle.
  • Sliding doors ride on stainless steel V-channel with stainless steel bearings. Doors fit within plastic channel frame.
  • Six (6) adjustable heavy duty PVC coated wire shelves standard.
  • Each shelf supports a maximum weight of 150 lbs. (69 kg).
  • LED interior lighting, two (2) clips underneath shelf to keep wires in place. Safety shielded.
  • Evaporator is epoxy coated to eliminate the potential of corrosion.
  • Electronic temperature control
Specifications
Model TGM-R-77-SM/SM-S-S
Width 77.25 Inches
Depth 39 Inches
Height 49.12 Inches
Voltage 115 Volts
Hertz 60 Hertz
Phase 1
Amps 12.0 Amps
Horsepower 1/2 HP
Number of Doors 2
Number of Shelves 6
Door Style Slide
Door Type Glass
Exterior Color Stainless Steel
Interior Color Stainless Steel
Self-Serve No
Standard Temperature 33 - 41°F / 0.5°C - 5°C
Product Type Refrigerated Merchandising Display
  • Made in America This product was made in United States of America.
  • UL Canada & USA Certified by Underwriters Laboratories, this product has been stringently tested and meets US and Canada's safety standards.
  • UL Classified EPH Complies with UL safety standards and ANSI/NSF standards.
  • 5-15P This product comes with a NEMA 5-15P plug.
