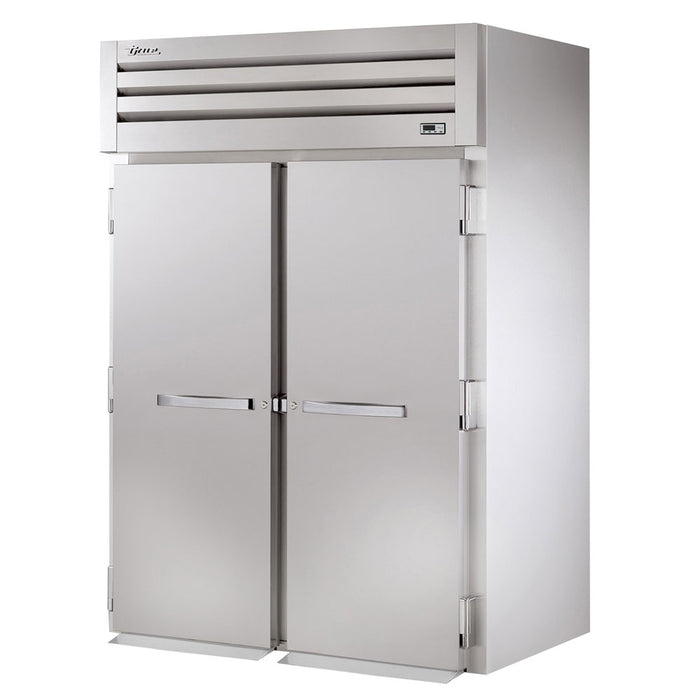

True STG2FRI-2S 68" Spec Series Roll-In Solid Swing Door Reach-In Freezer
This product is discontinued.
Please view the recommended replacement(s): Reach-In Refrigerators and Freezers.
Need Help?
Contact one of our experts.
Product Overview
True STG2FRI-2S 68" Spec Series Roll-In Solid Swing Door Freezer is factory engineered, selfcontained, capillary tube system using environmentally friendly (CFC free) 404A refrigerant.
Its extra large evaporator coil balanced with higher horsepower compressor and large condenser maintains -10°F (-23.3°C) cabinet temperature. Ideal for both frozen foods and ice cream.
Features:
- Top mounted refrigeration system with evaporator positioned out of food zone to maximize capacity.
- Automatic defrost system time-initiated, temperature terminated. Saves energy consumption and provides shortest possible defrost cycle.
- Automatic evaporator fan motor delay during defrost cycle.
- Insulation - entire cabinet structure and solid door are foamed-in-place using a high density, polyurethane insulation that has zero ozone depletion potential (ODP) and zero global warming potential (GWP).
- Magnetic door gasket of one piece construction, removable without tools for ease of cleaning.
- Exterior digital temperature display, available with either °F or °C.
- Evaporator epoxy coated to eliminate the potential of corrosion.
- Backguard improves airflow.
- Interior bumpers protect cabinet walls from abuse caused by rollin carts.
- Unit completely pre-wired at factory and ready for final connection to a 115/208- 230/60Hz single phase, 3 pole, 4 wire, 20 amp dedicated outlet. Cord and plug set included.
Specifications | |
---|---|
Model | STG2FRI-2S |
Width | 68 Inches |
Depth | 34.75 Inches |
Height | 83.75 Inches |
Voltage | 115 / 208 - 230 Volts |
Hertz | 60 Hertz |
Phase | 1 |
Horsepower | 1 1/5 HP |
Amps | 8.0 Amps |
Capacity | 75 Cu. Ft. |
Number of Doors | 2 |
Number of Sections | 2 |
Door Type | Solid Door |
Door Style | Swing Door |
Exterior Material | Stainless Steel with Aluminum |
Interior Material | Aluminum and Stainless Steel |
Freezer Temperature | -10°F /-23.3°C |
NEMA | 14-20P |
Product Type | Reach-In Freezer |
