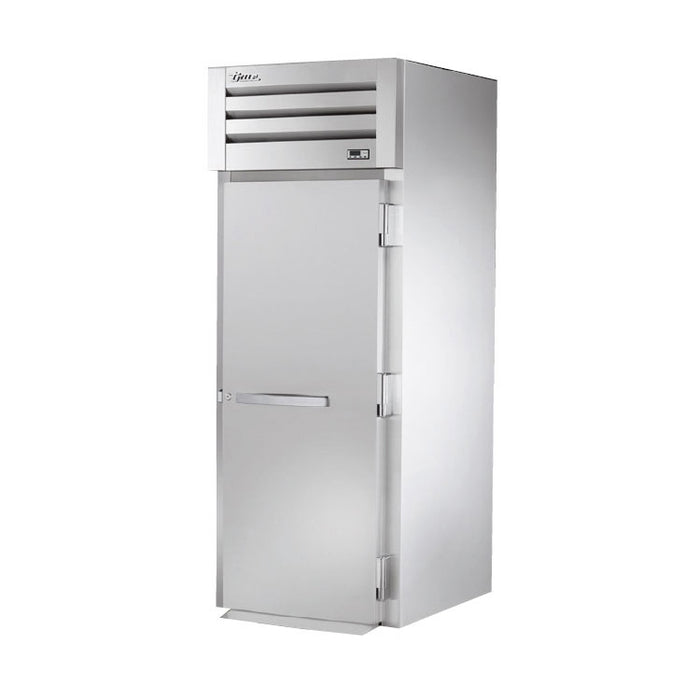

True STG1FRI-1S 35" One-Section Roll-In Solid Swing Door Freezer
This product is discontinued.
Please view the recommended replacement(s): Roll-in Refrigeration.
Need Help?
Contact one of our experts.
Product Overview
This True STG1FRI-1S 35" One-Section Roll-In Solid Swing Door Freezer is factory engineered, self-contained, capillary tube system using environmentally friendly (CFC free) 404A refrigerant.
Its extra large evaporator coil balanced with higher horsepower compressor and large condenser maintains -10°F (-23.3°C) cabinet temperature. It's ideal for both frozen foods and ice cream.
Sealed, cast iron, self-lubricating evaporator fan motors and larger fan blades give True roll-in’s a more efficient low velocity, high volume airflow design. This unique design ensures faster temperature recovery and shorter run times in the busiest of food service environments.
Features:
- Top mounted refrigeration system with evaporator positioned out of food zone to maximize capacity.
- Automatic defrost system time-initiated, temperature terminated. Saves energy consumption and provides shortest possible defrost cycle.
- Automatic evaporator fan motor delay during defrost cycle.
- Insulation - entire cabinet structure and solid door are foamed-in-place using a high density, polyurethane insulation that has zero ozone depletion potential (ODP) and zero global warming potential (GWP).
- One heavy gauge stainless steel ramp. Magnetic door gasket of one piece construction, removable without tools for ease of cleaning.
- Incandescent interior lighting, safety shielded.
- Exterior digital temperature display, available with either °F or °C .
- Evaporator epoxy coated to eliminate the potential of corrosion.
- Interior bumpers protect cabinet walls from abuse caused by rollin carts.
Specifications | |
---|---|
Model | STG1FRI-1S |
Width | 35 Inches |
Depth | 34.75 Inches |
Height | 83.75 Inches |
Voltage | 115 Volts |
Hertz | 60 Hertz |
Phase | 1 |
Freezer Horsepower | 3/4 HP |
Amps | 12 Amps |
Number of Doors | 1 |
Number of Sections | 1 |
Door Type | Solid |
Door Style | Swing Door |
Exterior Material | Stainless Steel with Aluminum |
Interior Material | Aluminum and Stainless Steel |
Freezer Temperature | -10°F / -23.3°C |
Product Type | Roll-In Freezer |
