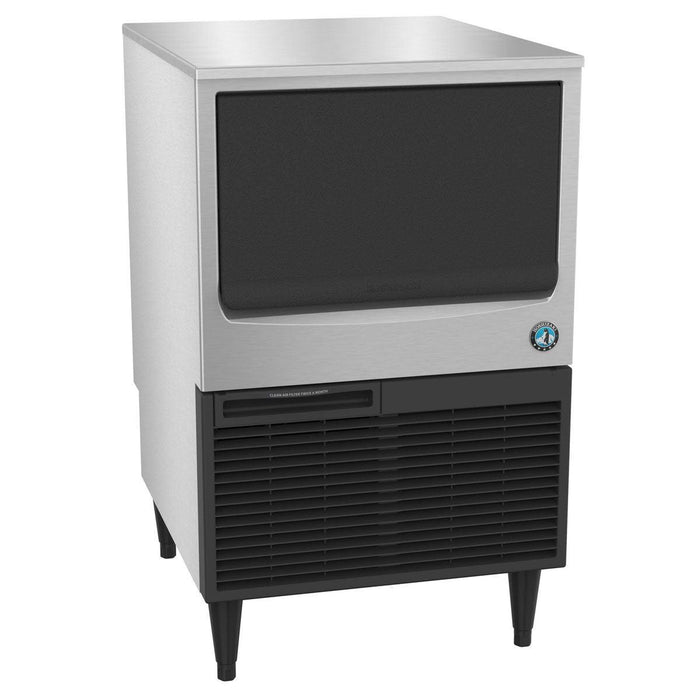

Hoshizaki KM-160BAJ 24" Air-Cooled Undercounter Ice Machine - 162 lb.

This product is discontinued.
Please view the recommended replacement(s): KM-161BAJ.

Need Help?
Contact one of our experts.

Product Overview

The KM-160BAJ is capable of producing approximately 162 lbs of crescent cubed ice. This Undercounter Air-cooled, Self Contained, Built in Storage Bin icemaker stores up to 78 lbs of ice*, which makes it ideal for small bars, hotel lobbies, and office break rooms. It features the CycleSaver™ design and includes the EverCheck™ alert system making the unit simple to maintain. The KM-160BAJ requires a Single phase, 115v/60/1, 6.5 ft cord with NEMA 5-15 plug electrical connection. Icemaker with built in storage. Please consult the Specification Sheet for additional details.*Rated in accordance with AHRI Standard 820(I-P). Capacity based on 100% of total volume x 30 lb/ft³ average density of ice. Replaces KM-151BAH.

  • Dimensions: 23-3/4″ W x 28″ D x 39″ H
  • Up to 162 lb of ice produced per 24 hours
  • Up to 78 lb of built-in storage capacity (2.6 ft³)
  • Produces crescent shaped ice cubes
  • Durable stainless steel exterior
  • Icemaker with built in storage
  • EverCheck alert system
  • CycleSaver design
  • Slide in door, ice bin opening is ADA compliant
  • R-134a refrigerant (7.4 oz. / 210 g)
  • Heat Rejection: 3050 BTU/hr
  • Ambient temperature range: 45 - 100°F
  • Water temperature range: 45 - 90°F
  • Water pressure: 10 - 113psig
  • Voltage range: 104 - 127V
  • 1 amps (15 Amp Max fuse)
  • 27 kwh/100 lb @ 90/70
  • Single phase, 115v/60/1, 6.5 ft cord with NEMA 5-15 plug
  • Clean ice and easy maintenance lead to longer unit life span

Spec Sheet
