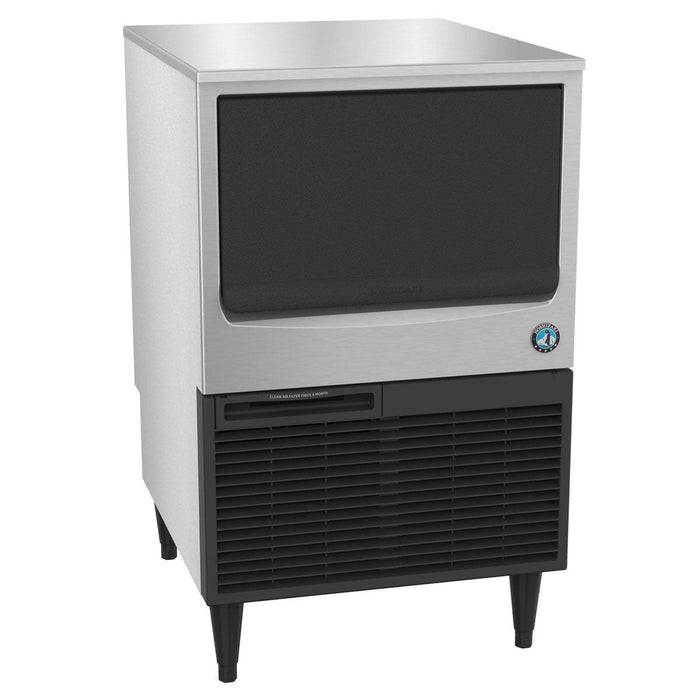

Hoshizaki KM-115BAJ 24" Air Cooled Undercounter Ice Machine - 116 lb.

This product is discontinued.
Please view the recommended replacement(s): KM-116BAJ.

Need Help?
Contact one of our experts.

Product Overview

The KM-115BAJ is capable of producing approximately 116 lbs of crescent cubed ice. This Undercounter Air-cooled, Self Contained, Built in Storage Bin icemaker stores up to 53 lbs of ice*, which makes it ideal for small bars, hotel lobbies, and office break rooms. It features the CycleSaver™ design and includes the EverCheck™ alert system making the unit simple to maintain. The KM-115BAJ requires a Single phase, 115v/60/1, 6.5 ft cord with NEMA 5-15 plug electrical connection. Icemaker with built in storage. ENERGY STAR® qualified. Please consult the Specification Sheet for additional details.*Rated in accordance with AHRI Standard 820(I-P). Capacity based on 100% of total volume x 30 lb/ft³ average density of ice. Replaces KM-101BAH.

  • Dimensions: 23-3/4″ W x 24″ D x 39″ H
  • Up to 116 lb of ice produced per 24 hours
  • Up to 53 lb of built-in storage capacity (1.8ft³)
  • Produces crescent shaped ice cubes
  • Durable stainless steel exterior
  • Icemaker with built in storage
  • EverCheck alert system
  • CycleSaver design
  • HS-5061 drain pump assembly, sold separately
  • R-134a refrigerant (7.8 oz. / 220 g)
  • Heat Rejection:2100 BTU/hr
  • Ambient temperature range: 45 - 100°F
  • Water temperature range: 45 - 90°F
  • Water pressure: 10 - 113psig
  • Voltage range: 104 - 127V
  • 5 amps (15 Amp Max fuse)
  • 1 kwh/100 lb @ 90/70
  • Single phase, 115v/60/1, 6.5 ft cord with NEMA 5-15 plug
  • ENERGY STAR qualified

Spec Sheet
