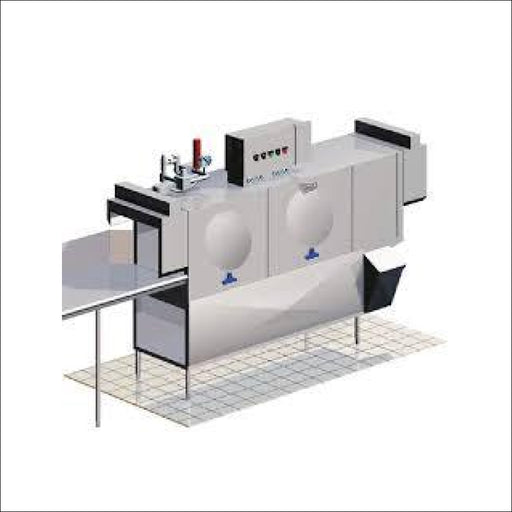

Hobart Stero ER-86S Rack Conveyor Dishwasher - 3 Phase
Product Overview
- 270 racks per hour
- Rinse 2.02 gpm /.49 gallons per rack
- Automatic fill maintains proper tank levels
- Automatic start, rack activated switch starts conveyor and pumps
- Automatic shut down stops operation during idle periods
- 2 HP wash motor recirculating 225 gpm
Description
The STERO ER-86S provides a powerful scrapper, recirculating heated wash and rinse tanks followed by a fresh water rinse creating a high volume, low water consuming washer in an 86" footprint. The scrapper tank does the work of a manual pre-rinsing operation, but does it faster and better with 185 gpm of re-circulated water, stripping food soil from above and below the ware. Stripping food soil prior to washing increases labor and detergent savings. Food soil is transferred to the outboard scrap catchment automatically by the rinse water feed-back system keeping the scrapper tank water clean.
The full rack width washing pattern with our 225 gallons per minute pump powers this dishwashing workhorse. Rinsing and sanitizing is controlled by STERO’s exclusive rack activated final rinse which guarantees accurate, trouble free cleaning.
Specifications
| Specifications | |
|---|---|
| Model | ER-86S |
| Width | 86 inches |
| Depth | 25 inches |
| Height | 73 inches |
| Voltage | 208 V / 220 V / 480 V |
| Hertz | 60 Hz |
| Phase | 3 Phase |
| Amps | 9.5 / 17.9 / 39.6 / 87.4 Amps |
| Heating Unit | 10 / 15 kW |
| Racks per Hour | 270 |
| Water Usage | 2.02 gpm / .49 gal per rack |
| Water Temperature | Incoming water: 140°F |
| Required Final Rinse Temperature | 180°F |
| Dishwasher Type | Conveyor |
| Weight | 1050 |
