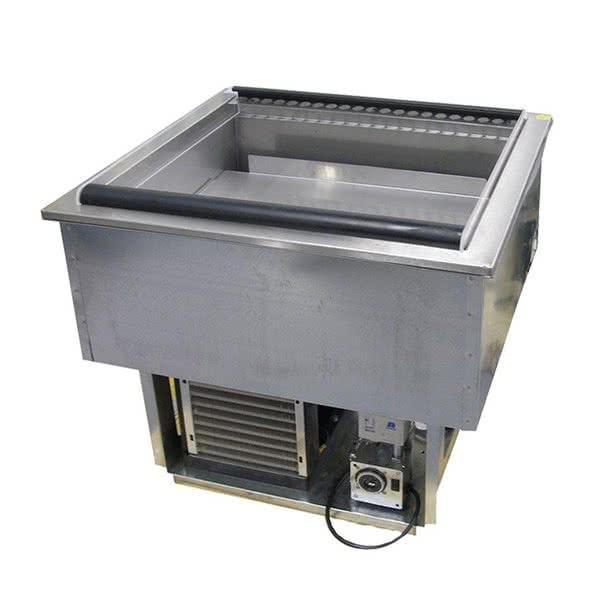

Delfield N8144-FA 3-Pan 43" Drop-In Self-Contained Forced Air Cold Well - 115V, 1 Phase

Contact Us for Pricing? Please fill out the form below to receive a personalized quote.
* Email:
Shipping Address:

Need Help?
Contact one of our experts.

Product Overview

Exterior: Top is one-piece stainless steel. Sides are wrapped with refrigeration lines. Sides and bottom are fully insulated with high-density environmentally friendly closed-cell polyurethane. Exterior housing is galvanized steel.

Interior: Interior liner is stainless steel and is creased to a 1.00" (2.5cm) diameter drain. 4 pan models and larger have two drains. A stainless steel bracket, flush with the top helps to accommodate 12" x 20" (30cm x 51cm) pans with 4" (10cm) or 6" (15cm) deep supplied by others. Product temperatures of 33°F (1°C) to 41°F (5°C) are maintained at 86°F (29°C) ambient room temperature, meeting NSF 7 requirements. Adapter bars for 12" x 20" (30cm x 51cm) pans are standard.

Refrigeration System: Refrigeration system uses HFC-404A refrigerant. Condensing unit is suspended below the cold pan on a 16-gauge steel frame and uses HFC-404a refrigerant. Temperature controlled by a low-pressure control with separate ON/OFF switch and defrost timer. Unit is supplied with expansion valve. Evaporator coil cools pans by air flowing over and under pans.

Stainless Steel Louver A stainless steel louver is provided for field installation on the front of the cabinet, 4" below top of counter; cut-out dimension for each is 12" x 23.5" (30.5cm x 59.7cm). A second opening 11" x 22" (28cm x 56cm) at the rear of the cabinet should be provided at installation to allow for proper air circulation.

Electrical System Electrical system is 115V/60Hz/1Ph with NEMA 5-15 plug on the N8131-FA, N8144-FA and N8157-FA models. The N8169-FA and N8182-FA models come with a NEMA 5-20 plug.

Specifications
Model N8144-FA
Width 43 Inches
Depth 25.5 Inches
Height 26.62 Inches
Voltage 115 Volts
Hertz 60 Amps
Phase Single
Horsepower 1/2 HP
Pan Capacity 3 12"x20" Pan
Material Construction Stainless Steel
Energy Type Electric
Installation Type Drop In
Product Type Cold Well
  • Made in America This product was made in United States of America.
  • NSF Certified This item meets NSF's standards that focuses on public health protection, ensuring the item is designed and constructed in a way that promotes food safety.
  • UL Certified Certified by Underwriters Laboratories, this product has been stringently tested and meets safety standards.
  • UL Certified Certified by Underwriters Laboratories, this product has been stringently tested and meets safety standards.
  • 5-15P This product comes with a NEMA 5-15P plug.
