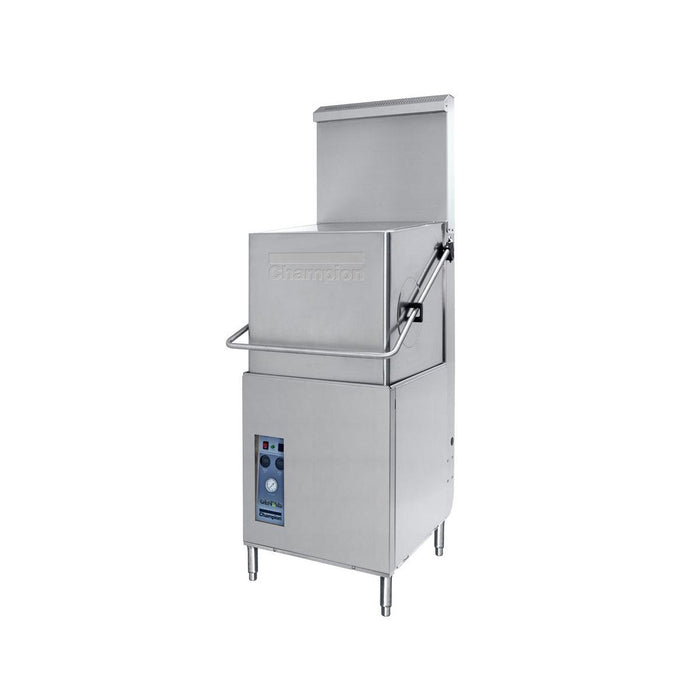

Champion DH5000-VHR High-Temp Hood-Type Dishwasher - 208V, 1 Phase

Contact Us for Pricing? Please fill out the form below to receive a personalized quote.
* Email:
Shipping Address:

Need Help?
Contact one of our experts.

Product Overview

  • 37 racks per hour
  • 0.83 gallons used per rack
  • High efficiency 1 HP pump
  • Ventless System
  • Digital display and dial controls
  • Built-in 70°rise booster
  • Wash temperature 150°F
  • Rinse temperature 180°F

The Champion DH5000-VHR ventless heat recovery high temperature hood-type dishwasher has all the features you need to properly wash and sanitize your glassware and dinnerware.

With the high efficiency 1 HP pump the DH5000-VHR is able to wash a up to 37 racks per hour using 0.83 gals per rack. With a built-in 70°F rise booster configured and a final rinse of 180°F, ensuring your dishes are sanitized properly. This dishwasher automatically starts once the hood is close and with the new Dry Assist feature, the drying process is faster than regular dishwashers, helping you save time and an added extra convenience.

The bottom mounted digital controls give you full control of the wash and final rinse temperatures, wash flow pressure, and the option of a standard cycle (60 seconds) or extended cycle (90 seconds). The rinse and wash dial controls feature a digital temperature display and below is an included is a pressure gauge indicating the final rinse water flow pressure.

The ventless model is able to reuse its heat while removing condensation by removing heat and water vapor at the end of the cycle while transferring the normally exhausted heat to the 70°F riser.

Overall dimensions
Height: 81 7/8" (Add 8 1/8" for minimum clearance)
Depth: 34 1/8"
Width: 26 1/8"

Model DH5000-VHR
Width 26.13 inches
Depth 34.13 inches
Height 81.88 inches
Racks Per Hour 37
Water Usage Per Rack 0.83 gallons
Motor Horsepower 1HP
Water Consumption Per Hour (max use.) 30.7 gallons
Water Tank Capacity 9.5 gallons
Dishwasher Type Hood-type
Wash Temperature 150°F
Rinse Temperature 180°F
Wattage 5.2 kW - 10 kW
Voltage 208V
Phase 1
  • NSF Certified This item meets NSF's standards that focuses on public health protection, ensuring the item is designed and constructed in a way that promotes food safety.
  • Made in America This product was made in United States of America.
  • UL Canada & USA Certified by Underwriters Laboratories, this product has been stringently tested and meets US and Canada's safety standards.
  • Energy Star Partner This item meets strict energy performance standards set by EPA. Highly energy efficient making it less expensive to operate.
  • Files
    Spec Sheet
